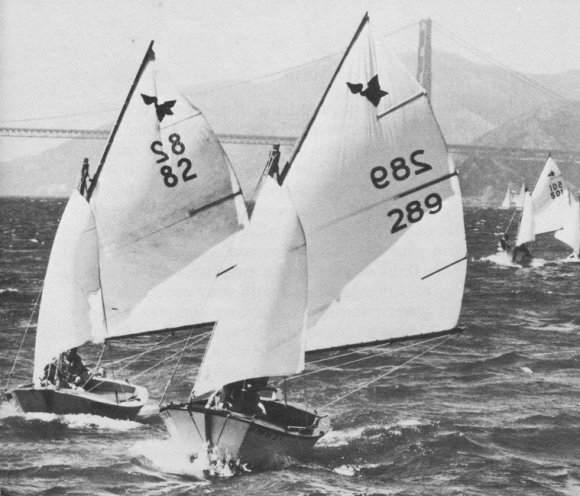

San Francisco Bay Pelican
Description
The San Francisco Bay Pelican is a dinghy. This pocket cruiser packs surprising capability into a small package, featuring variable draft for versatility in different sailing conditions. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 12.000 ft |
| LOA | 12.210 ft |
| Beam | 6.150 ft |
| Displacement | 390 lb |
| Max Draft | 4.000 ft |
| Min Draft | 0.330 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 10 ft - (3048 mm) |
| Foot | 8 ft - (2438 mm) |
| Leech | 8.5 ft - (2591 mm) |
| Length Perpendicular | 6.55 ft - (1996 mm) |
| Area | * 32.77 ft² |
| Sail Type | LUGSAIL |
|---|---|
| Luff | 3.5 ft - (1067 mm) |
| Foot | 10.5 ft - (3200 mm) |
| Leech | 14.33 ft - (4368 mm) |
| Tack Angle | * 85.26 ° |
| Diag (clew/throat) | 10.79 ft - (3289 mm) |
| Head | 10.5 ft - (3200 mm) |
| Area | * 74.71 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
