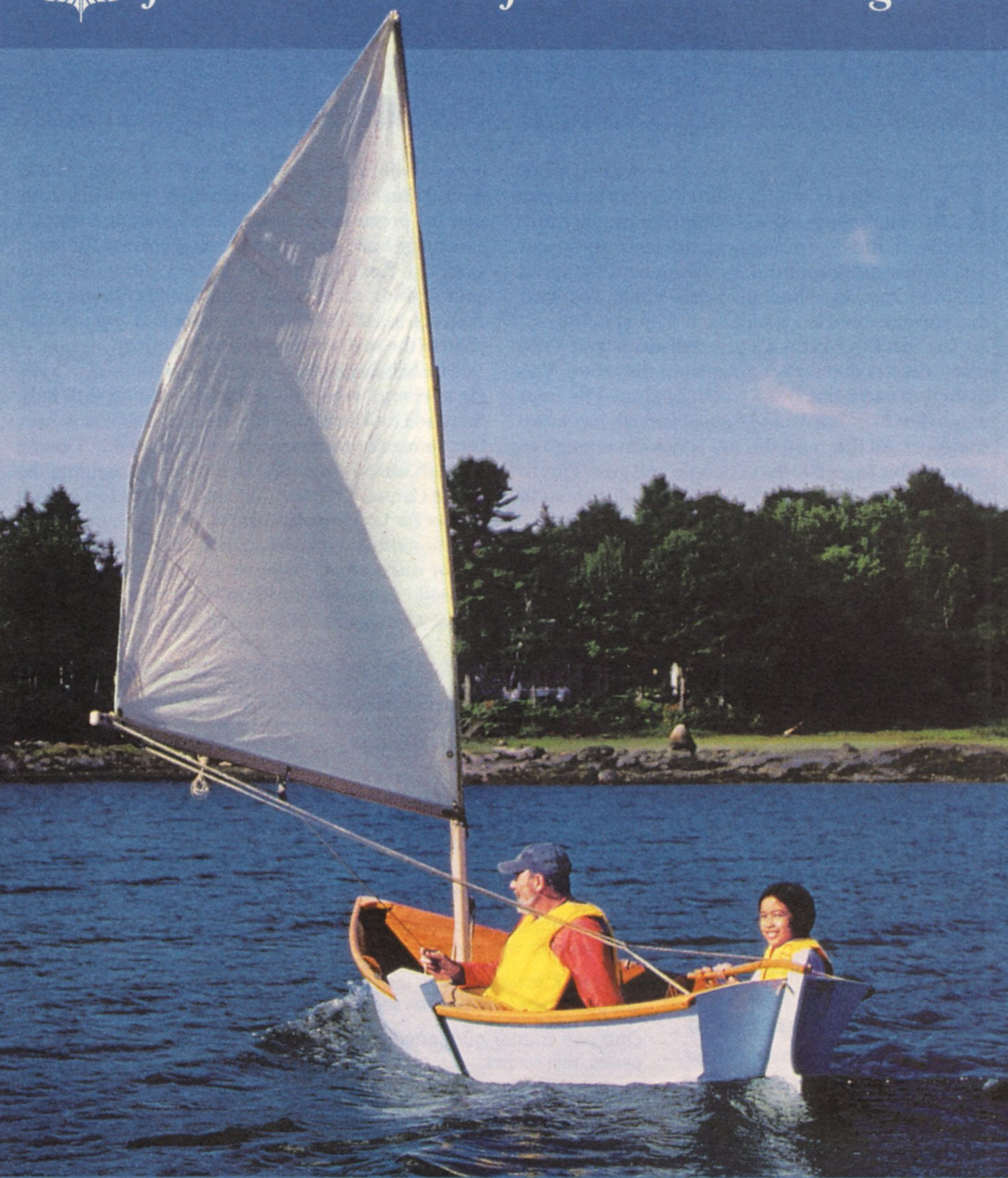

Salt Bay Skiff
Description
The Salt Bay Skiff is a sailboat designed by Chris Franklin.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 10.92 ft - (3328 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | * 12.35 ft - (3764 mm) |
| Tack Angle | * 85.03 ° |
| Diagonal | 12.45 ft - (3795 mm) |
| Head (inches) | 2 in - (51 mm) |
| Area | * 38.91 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 7.67 ft - (2338 mm) |
| Foot | 4.167 ft - (1270 mm) |
| Leech | 6.25 ft - (1905 mm) |
| Deck Angle | * 18.53 ° |
| Area | * 13.01 ft² |
| Sail Type | SPRIT |
|---|---|
| Luff | 6.67 ft - (2033 mm) |
| Foot | 7.58 ft - (2310 mm) |
| Leech | 9.42 ft - (2871 mm) |
| Tack Angle | * 85.21 ° |
| Diag (clew/throat) | 9.67 ft - (2947 mm) |
| Head | 4.167 ft - (1270 mm) |
| Area | * 44.56 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
