Sakonnet 23
Description

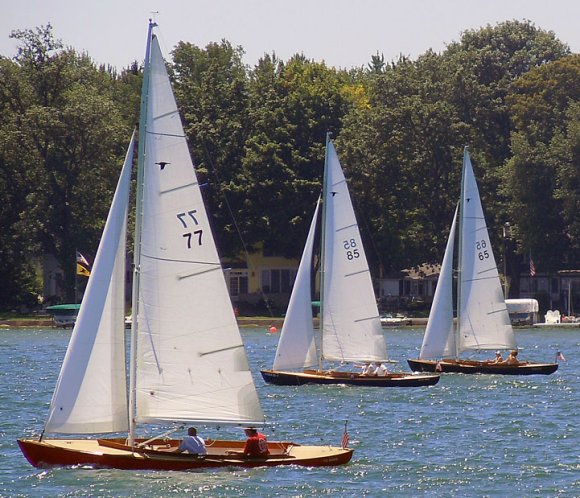

The SAKONNET 23 is a small sailboat designed by Joel White. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Joel White |
|---|---|
| Length | 23.000 ft |
| LOA | 23.170 ft |
| LWL | 18.670 ft |
| Beam | 6.080 ft |
| Displacement | 2000 lb |
| Max Draft | 5.160 ft |
| Min Draft | 1.830 ft |
The standard boat dimensions
| i | 23.75 ft |
|---|---|
| j | 6.08 ft |
| p | 26.50 ft |
| e | 9.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 23.75 ft | 6.08 ft | 26.50 ft | 9.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 26.5 ft - (8077 mm) |
| Foot | * 9.25 ft - (2819 mm) |
| Leech-AftHdBd | * 27.58 ft - (8406 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.76 ft - (8461 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 126.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22.25 ft - (6782 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 21 ft - (6401 mm) |
| Percentage LP | * 108.72 % |
| Length Perpendicular | * 6.61 ft - (2015 mm) |
| Deck Angle | * 4.96 ° |
| Area | * 73.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 22.25 ft - (6782 mm) |
| Foot | 8.33 ft - (2539 mm) |
| Leech | 21.33 ft - (6501 mm) |
| Percentage LP | * 130.92 % |
| Length Perpendicular | * 7.96 ft - (2426 mm) |
| Deck Angle | * 2.82 ° |
| Area | * 88.54 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 23.27 ft - (7093 mm) |
| MidGirth | * 10.8 ft - (3292 mm) |
| Foot | * 10.8 ft - (3292 mm) |
| Perc LP | * 180 % |
| Area | 213.62 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
