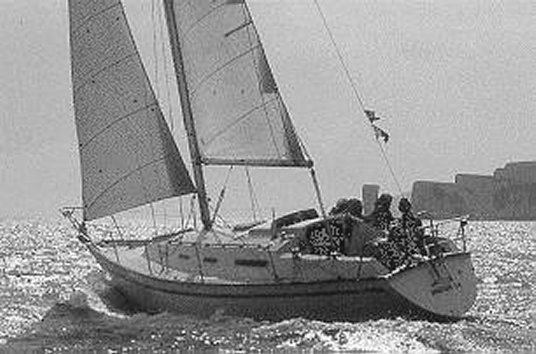

Sadler 34
Description
The SADLER 34 is a mid-sized cruiser designed by David Sadler. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | David Sadler |
|---|---|
| Length | 35.000 ft |
| LOA | 34.750 ft |
| LWL | 27.830 ft |
| Beam | 10.750 ft |
| Displacement | 12800 lb |
| Max Draft | 5.830 ft |
The standard boat dimensions
| i | 42.59 ft |
|---|---|
| j | 12.83 ft |
| p | 36.52 ft |
| e | 11.68 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42.59 ft | 12.83 ft | 36.52 ft | 11.68 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36.52 ft - (11131 mm) |
| Foot | * 11.68 ft - (3560 mm) |
| Leech-AftHdBd | * 37.82 ft - (11528 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 37.95 ft - (11567 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 213.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.58 ft - (10845 mm) |
| Foot | * 16.83 ft - (5130 mm) |
| Leech | * 31.19 ft - (9507 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.75 ft - (4496 mm) |
| Deck Angle | * 12 ° |
| Area | 262.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 42.26 ft - (12881 mm) |
| Foot | * 20.58 ft - (6273 mm) |
| Leech | * 39.91 ft - (12165 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.25 ft - (5867 mm) |
| Deck Angle | * 4 ° |
| Area | 406.61 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 42.26 ft - (12881 mm) |
| MidGirth | * 23.09 ft - (7038 mm) |
| Foot | * 23.09 ft - (7038 mm) |
| Perc LP | * 180 % |
| Area | 829.42 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
