S2 6.9 Meter (Grand Slam Series)
Description
The S2 6.9 Meter, also known as the S2 6.9 Grand Slam, is a zippy American trailerable sailboat from the early 1980s, designed by Don Wennersten and Graham & Schlageter for S2 Yachts. At twenty-two feet overall with an eighteen-foot-seven waterline, eight-foot beam, and twenty-two hundred pounds displacement, she's a fractional-rigged fractional sloop that's a blast for racing or day sailing, hitting speeds up to eight knots in a breeze while handling light airs like a champ. Solid fiberglass build, swing keel for shallow drafts down to one-foot-six, and room for four crew make her a forgiving yet competitive pocket rocket-perfect for club races, though watch that rating if you're handicap sailing.
Construction Details
| Designer | Graham and Schlageter |
|---|---|
| Builder | S2 Yachts |
| Length | 22.000 ft |
| LWL | 18.583 ft |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 7.83 ft |
| p | 25.33 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 26 ft | 7.83 ft | 25.33 ft | 10 ft | - | - | - | - |
Documents

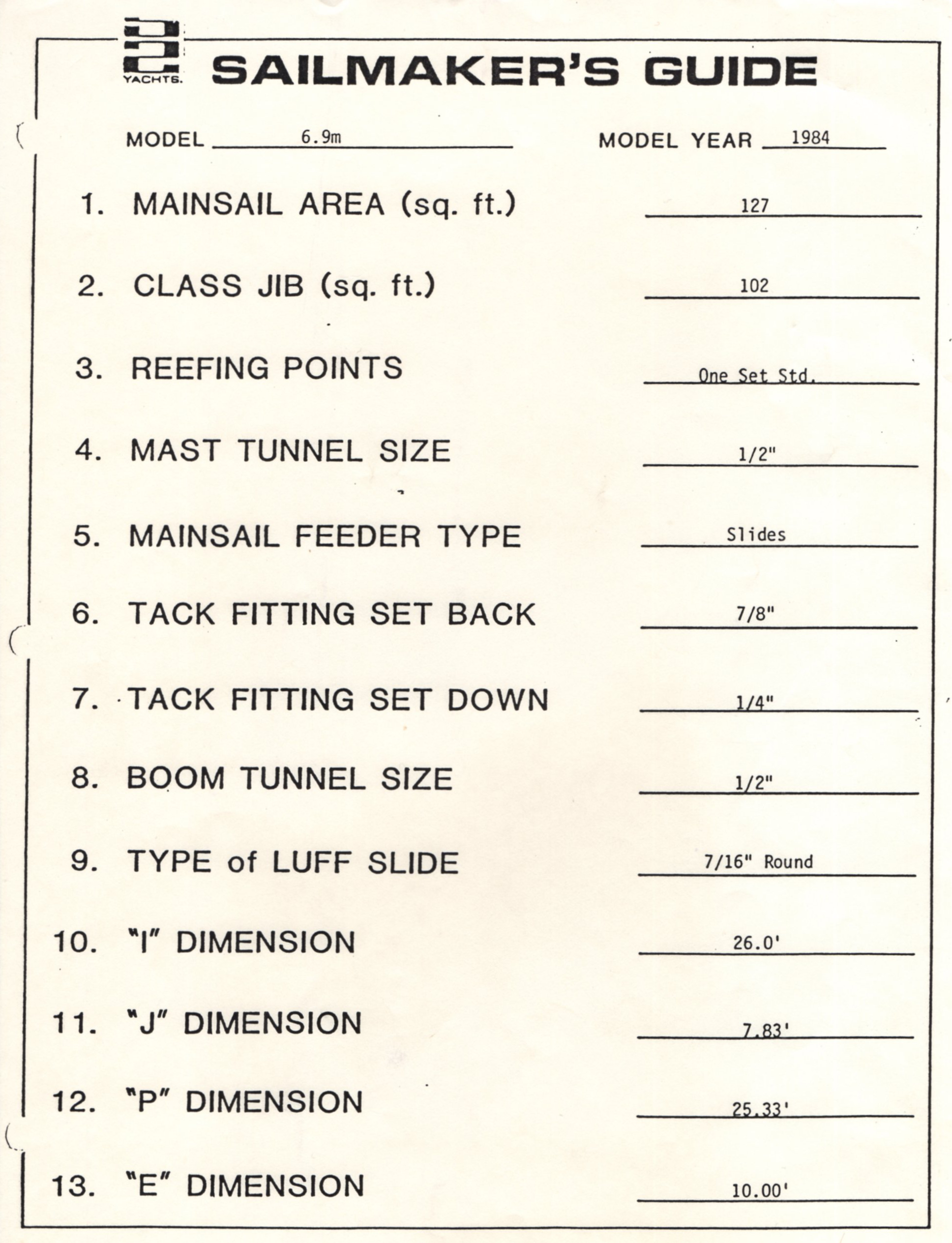

Blueprints
Sails
S2 6.9 Meter (Grand Slam Series) - MAINSAIL
| Luff | * 25.33 ft - (7721 mm) |
|---|---|
| Foot | * 10 ft - (3048 mm) |
| Leech | * 26.7 ft - (8138 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 26.91 ft - (8202 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 130.73 ft² |
| Edit in Calculator | |
S2 6.9 Meter (Grand Slam Series) - JIBSAIL
| Luff | 25.75 ft - (7849 mm) |
|---|---|
| Foot | 8.33 ft - (2539 mm) |
| Leech | 24.25 ft - (7391 mm) |
| Percentage LP | * 100.13 % |
| Length Perpendicular | * 7.84 ft - (2390 mm) |
| Deck Angle | * 2.91 ° |
| Area | * 100.99 ft² |
| Edit in Calculator | |
S2 6.9 Meter (Grand Slam Series) - JIBSAIL
| Luff | * 21.72 ft - (6620 mm) |
|---|---|
| Foot | * 10.27 ft - (3130 mm) |
| Leech | * 19.04 ft - (5803 mm) |
| Percentage LP | * 114.94 % |
| Length Perpendicular | * 9 ft - (2743 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 97.77 ft² |
| Edit in Calculator | |
S2 6.9 Meter (Grand Slam Series) - GENOA
| Luff | 25.75 ft - (7849 mm) |
|---|---|
| Foot | 12.58 ft - (3834 mm) |
| Leech | 24.5 ft - (7468 mm) |
| Percentage LP | * 150.96 % |
| Length Perpendicular | * 11.82 ft - (3603 mm) |
| Deck Angle | * 3.19 ° |
| Area | * 152.25 ft² |
| Edit in Calculator | |
S2 6.9 Meter (Grand Slam Series) - ASYMMETRICAL
| Luff | * 25.8 ft - (7864 mm) |
|---|---|
| Foot | * 12.92 ft - (3938 mm) |
| Leech | * 23.74 ft - (7236 mm) |
| Perc LP | * 165 % |
| Area | * 250 ft² |
| Edit in Calculator | |
S2 6.9 Meter (Grand Slam Series) - ASYMMETRICAL
| Luff | 27.86 ft - (8492 mm) |
|---|---|
| Foot | 18 ft - (5486 mm) |
| Leech | 25.75 ft - (7849 mm) |
| Perc LP | * 165 % |
| Area | * 376 ft² |
| Edit in Calculator | |
S2 6.9 Meter (Grand Slam Series) - SPINNAKER
| Stays | * 25.8 ft - (7864 mm) |
|---|---|
| MidGirth | * 14.09 ft - (4295 mm) |
| Foot | * 14.09 ft - (4295 mm) |
| Perc LP | * 180 % |
| Area | * 309 ft² |
| Edit in Calculator | |
