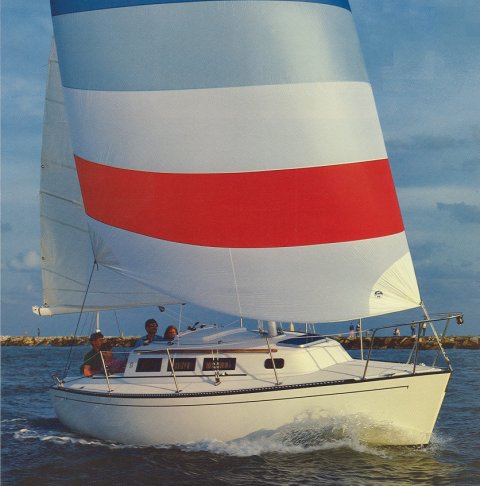

S2 27
Description
The S2 27 is a compact cruiser designed by Graham & Schlageter. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Graham & Schlageter |
|---|---|
| Length | 27.000 ft |
| LOA | 26.580 ft |
| LWL | 23.330 ft |
| Beam | 9.250 ft |
| Displacement | 5000 lb |
| Max Draft | 4.750 ft |
The standard boat dimensions
| i | 34 ft |
|---|---|
| j | 10 ft |
| p | 28.67 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34 ft | 10 ft | 28.67 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 28.67 ft - (8739 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 30.44 ft - (9278 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 30.69 ft - (9354 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 177.4 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 33 ft - (10058 mm) |
| Foot | 11.083 ft - (3378 mm) |
| Leech | 30 ft - (9144 mm) |
| Percentage LP | * 100.3 % |
| Length Perpendicular | * 10.03 ft - (3057 mm) |
| Deck Angle | * 8.84 ° |
| Area | * 165.42 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 28.35 ft - (8641 mm) |
| Foot | * 13.07 ft - (3984 mm) |
| Leech | * 24.95 ft - (7605 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 11.5 ft - (3505 mm) |
| Deck Angle | * 11.97 ° |
| Area | * 163.03 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 32.5 ft - (9906 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 30.5 ft - (9296 mm) |
| Percentage LP | * 130.9 % |
| Length Perpendicular | * 13.09 ft - (3990 mm) |
| Deck Angle | * 4.33 ° |
| Area | * 212.78 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 33.67 ft - (10263 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech | * 31.85 ft - (9708 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15 ft - (4572 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 252.5 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 33.67 ft - (10263 mm) |
| MidGirth | * 18 ft - (5486 mm) |
| Foot | * 18 ft - (5486 mm) |
| Perc LP | * 180 % |
| Area | * 515 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
