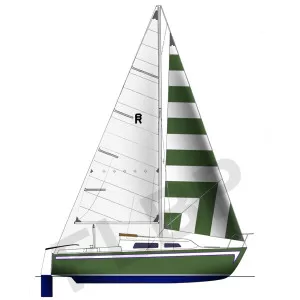

The standard boat dimensions
| i | 22.92 ft |
|---|---|
| j | 5.92 ft |
| p | 19.17 ft |
| e | 11.42 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22.92 ft | 5.92 ft | 19.17 ft | 11.42 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Luff | 17.75 ft - (5410 mm) |
| Foot | 8.83 ft - (2691 mm) |
| Leech | 17.33 ft - (5282 mm) |
| Percentage LP | * 142.57 % |
| Length Perpendicular | * 8.44 ft - (2573 mm) |
| Deck Angle | * 2.72 ° |
| Area | * 74.86 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 22.49 ft - (6855 mm) |
| Foot | * 9.77 ft - (2978 mm) |
| Leech | * 20.69 ft - (6306 mm) |
| Perc LP | * 165 |
| Area | * 165 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 22.49 ft - (6855 mm) |
| Foot | * 9.68 ft - (2950 mm) |
| Leech | * 20.64 ft - (6291 mm) |
| Perc LP | * 150 |
| Length Perp | * 8.88 |
| Deck Angle | * 9 ° |
| Area | * 99.84 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 19.17 ft - (5843 mm) |
| Foot | 11.42 ft - (3481 mm) |
| Leech-AftHdBd | * 21.86 ft - (6663 mm) |
| Tack Ang | * 88.9 ° |
| Diag (clew/head) | 22.125 ft - (6744 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 113.27 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 16.5 ft - (5029 mm) |
| Foot | 5.75 ft - (1753 mm) |
| Leech | 14.83 ft - (4520 mm) |
| Percentage LP | * 86.66 % |
| Length Perpendicular | * 5.13 ft - (1564 mm) |
| Deck Angle | * 12.26 ° |
| Area | * 42.36 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 19.25 ft - (5867 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 19.17 ft - (5843 mm) |
| Percentage LP | * 177.7 % |
| Length Perpendicular | * 10.52 ft - (3206 mm) |
| Deck Angle | * 2.55 ° |
| Area | * 101.23 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
