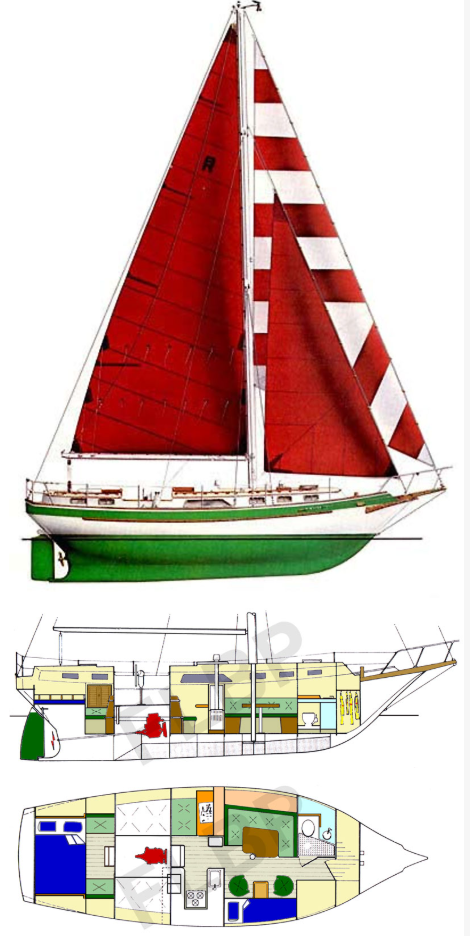

Roberts Spray 36 Cutter Rigged
Description
The Bruce Roberts Spray 36, part of the iconic Centennial Spray series designed by Bruce Roberts-Goodson in the 1980s, is a heavy-displacement bluewater cruiser celebrated for its seaworthy long-keel hull, spacious accommodations, and versatility, with thousands of Sprays built worldwide inspiring this model for family coastal or offshore voyages. In its cutter-rigged configuration—featuring an inner forestay for a staysail—this Bermudan (or optional gaff) setup enhances heavy-weather handling and sail balance, delivering efficient performance in light to moderate winds while maintaining the design's hallmark stability and simplicity for DIY builders. Constructed primarily in round-bilge steel or wood-epoxy (with multi-chine steel/aluminum or fiberglass options), it offers multiple layouts like center cockpit, trunk cabin, aft cockpit pilothouse, or poop stern with pilot house, accommodating 4–6 berths in a roomy interior exceeding similar-sized boats, powered by a 20–33 hp diesel auxiliary, and with build costs typically $80,000–$150,000.
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 36.000 ft |
| Beam | 11.250 ft |
| Displacement | 15456 lb |
| Ballast | 6720 lb |
| Max Draft | 5.583 ft |
The standard boat dimensions
| i | 47 ft |
|---|---|
| j | 18 ft |
| p | 41 ft |
| e | 16.58 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 47 ft | 18 ft | 41 ft | 16.58 ft | - | - | - | - |
Documents
Sails
Roberts Spray 36 Cutter Rigged - MAINSAIL
| Luff | * 41 ft - (12497 mm) |
|---|---|
| Foot | * 16.58 ft - (5054 mm) |
| Leech | * 43.41 ft - (13231 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 43.69 ft - (13317 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 348.71 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - JIBSAIL
| Luff | * 40.26 ft - (12271 mm) |
|---|---|
| Foot | * 24.67 ft - (7519 mm) |
| Leech | * 33.89 ft - (10330 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.7 ft - (6309 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 416.64 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - GENOA
| Luff | 46.17 ft - (14073 mm) |
|---|---|
| Foot | 22.5 ft - (6858 mm) |
| Leech | 43.42 ft - (13234 mm) |
| Percentage LP | * 116.5 % |
| Length Perpendicular | 20.97 ft - (6392 mm) |
| Deck Angle | * 0.28 ° |
| Area | * 484.14 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - ASYMMETRICAL
| Luff | * 47.81 ft - (14572 mm) |
|---|---|
| Foot | * 29.7 ft - (9053 mm) |
| Leech | * 43.99 ft - (13408 mm) |
| Perc LP | * 165 % |
| Area | * 1065 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - YANKEE
| Luff | 44 ft - (13411 mm) |
|---|---|
| Foot | 18.67 ft - (5691 mm) |
| Leech | 32.92 ft - (10034 mm) |
| Area | * 280.32 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - YANKEE
| Luff | 45.67 ft - (13920 mm) |
|---|---|
| Foot | 21 ft - (6401 mm) |
| Leech | 34.67 ft - (10567 mm) |
| Area | * 346.8 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - STAYSAIL
| Luff | 29 ft - (8839 mm) |
|---|---|
| Foot | 12.75 ft - (3886 mm) |
| Leech | 25.75 ft - (7849 mm) |
| Length Perpendicular | 11.32 ft - (3450 mm) |
| Area | * 164.11 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - STORMJIB
| Luff | * 27.68 ft - (8437 mm) |
|---|---|
| Foot | * 14.09 ft - (4295 mm) |
| Leech | * 19.97 ft - (6087 mm) |
| Perc LP | * 53.89 % |
| Length Perp | * 9.7 ft - (2957 mm) |
| Deck Angle | * 25.56 ° |
| Area | * 134.21 ft² |
| Edit in Calculator | |
Roberts Spray 36 Cutter Rigged - STORMTRYSAIL
| Luff | 17.5 ft - (5334 mm) |
|---|---|
| Foot | 12.25 ft - (3734 mm) |
| Leech | 23.83 ft - (7263 mm) |
| Length Perp | * 14.06 ft - (4285 mm) |
| Tack Angle | * 7.06 ° |
| Area | * 103 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
