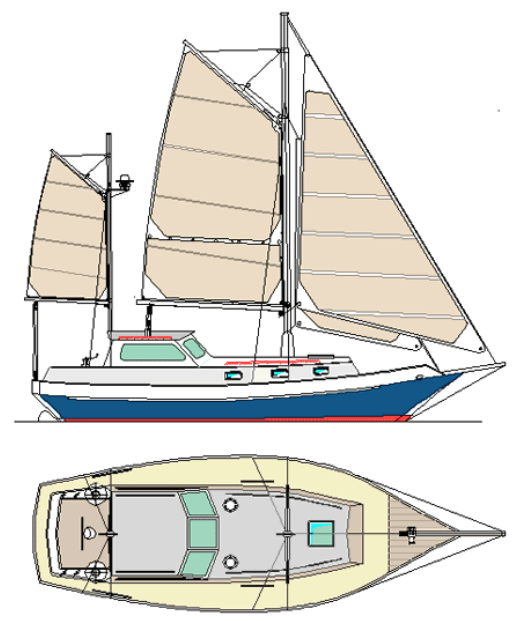

ROBERTS SPRAY 33 KETCH
Description
The ROBERTS SPRAY 33 KETCH is a sailboat.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 33.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | 14 ft |
| p | 36.25 ft |
| e | 12 ft |
| p2 | 26.50 ft |
| e2 | 8.75 ft |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | 14 ft | 36.25 ft | 12 ft | 26.50 ft | 8.75 ft |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GENOA |
|---|---|
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 36.25 ft - (11049 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 37.65 ft - (11476 mm) |
| Tack Ang | * 88.03 ° |
| Diag (clew/head) | * 37.79 ft - (11518 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 217.26 ft² |
| Sail Type | MIZZEN |
|---|---|
| Luff | * 26.5 ft - (8077 mm) |
| Foot | * 8.75 ft - (2667 mm) |
| Leech-AftHdBd | * 27.51 ft - (8385 mm) |
| Tack Ang | * 87.96 ° |
| Diag (clew/head) | * 27.61 ft - (8416 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | 115.81 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
