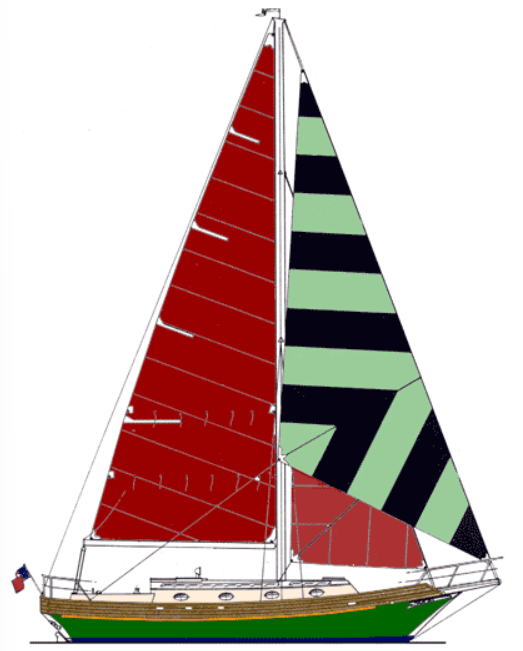

Roberts Spray 33 Cutter
Description
The Bruce Roberts Spray 33 is a sailboat design from the acclaimed Spray series by Australian naval architect Bruce Roberts, introduced in the 1970s as an owner-buildable bluewater pocket cruiser for solo or couple's coastal and offshore adventures, with numerous examples constructed worldwide in multi-chine steel, aluminum, fiberglass, or wood/epoxy emphasizing rugged simplicity and seaworthiness. Measuring 33 feet LOA with a 29-foot LWL, 12-foot beam, 4-foot shoal draft on a long keel for stability and gunkholing, and a displacement of approximately 22,000 pounds including substantial ballast, this cutter-, ketch-, or gaff-schooner-rigged vessel offers a sail area of around 500-600 square feet across mainsail and headsails for balanced 6-7.5 knot performance in 10-30 knot winds with forgiving handling and low weather helm, augmented by a 25- to 40-horsepower diesel auxiliary like the Yanmar 3GM. Its classic lines feature a clipper bow, counter stern, and moderate sheer on a heavy-duty hull with optional pilothouse, paired with a cozy interior boasting 6-foot headroom, four to six berths in V-forward, saloon settee, and quarter configurations, plus an L-galley, enclosed head, and tankage of 60-80 gallons each for fuel and water to support weeklong autonomy. Proven in circumnavigations and heavy-weather passages—as in steel-hulled examples discussed in sailing forums and sales listings—the Spray 33 delivers big-boat virtues in a trailerable (under 10 tons) package, remaining a favorite for budget adventurers chasing Joshua Slocum's legacy on a practical scale.
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 33.000 ft |
| LOA | 33.000 ft |
| LWL | 29.000 ft |
| Beam | 12.000 ft |
| Displacement | 22000 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 43 ft |
|---|---|
| j | 16.58 ft |
| p | 40 ft |
| e | 14.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 43 ft | 16.58 ft | 40 ft | 14.50 ft | - | - | - | - |
Documents
Blueprints2>
Sails
Roberts Spray 33 Cutter - MAINSAIL
| Luff | * 40 ft - (12192 mm) |
|---|---|
| Foot | * 14.5 ft - (4420 mm) |
| Leech | * 41.79 ft - (12738 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 42.07 ft - (12823 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 298.5 ft² |
| Edit in Calculator | |
Roberts Spray 33 Cutter - GENOA
| Luff | 42.5 ft - (12954 mm) |
|---|---|
| Foot | 27.25 ft - (8306 mm) |
| Leech | 40 ft - (12192 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 24.86 ft - (7577 mm) |
| Deck Angle | * 3.1 ° |
| Area | * 528.25 ft² |
| Edit in Calculator | |
Roberts Spray 33 Cutter - ASYMMETRICAL
| Luff | 44 ft - (13411 mm) |
|---|---|
| Foot | 27.33 ft - (8330 mm) |
| Leech | 41 ft - (12497 mm) |
| Perc LP | * 165 % |
| Area | * 902 ft² |
| Edit in Calculator | |
Roberts Spray 33 Cutter - YANKEE
| Luff | 41.5 ft - (12649 mm) |
|---|---|
| Foot | 18.5 ft - (5639 mm) |
| Leech | 30.67 ft - (9348 mm) |
| Percentage LP | * 76.06 % |
| Length Perpendicular | * 12.61 ft - (3844 mm) |
| Deck Angle | * 25.96 ° |
| Area | * 261.57 ft² |
| Edit in Calculator | |
Roberts Spray 33 Cutter - STAYSAIL
| Luff | 30 ft - (9144 mm) |
|---|---|
| Foot | 10.75 ft - (3277 mm) |
| Leech | 27.83 ft - (8483 mm) |
| Length Perpendicular | 9.97 ft - (3039 mm) |
| Area | * 149.57 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
