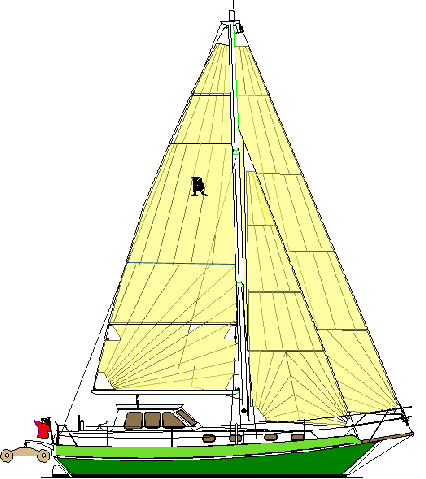

Roberts Spray 370A
Description
The Bruce Roberts S370A, a multi-chine variant of the acclaimed Spray 370 series designed by Bruce Roberts-Goodson in the 1970s, is a heavy-displacement cruising sloop renowned for its seaworthiness and versatility, with over 500 built worldwide, many undertaking epic voyages like circumnavigations or the Northwest Passage, thanks to its robust long-keel hull that excels in heavy weather while maintaining moderate speed (up to 12 knots surfing). Measuring 37 feet 2 inches LOA (or 39 feet with bowsprit), 12 feet 4 inches beam, and 4 feet 9 inches draft in shallow configuration, it displaces around 18,750 pounds with 8,000 pounds of ballast for exceptional stability, rigged as a sloop or cutter (ketch optional) with a 46-foot foretriangle height and sail areas including a 329-square-foot mainsail and 594-square-foot genoa for efficient light-air performance, powered by a 20–33 hp diesel auxiliary. Ideal for DIY builders using steel (primary), aluminum, fiberglass, or wood-epoxy, it offers customizable layouts like aft, center, or pilothouse cockpits, a spacious interior for 6–7 berths with 6 feet 3 inches headroom, a full galley, and practical storage, with build costs typically $100,000–$200,000.
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 39.000 ft |
| LOA | 19.250 ft |
| LWL | 16.583 ft |
| Beam | 7.083 ft |
| Max Draft | 3.583 ft |
| Min Draft | 0.833 ft |
The standard boat dimensions
| i | 46 ft |
|---|---|
| j | 17 ft |
| p | 40 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 46 ft | 17 ft | 40 ft | 16 ft | - | - | - | - |
Documents
Sails
Roberts Spray 370A - MAINSAIL
| Luff | * 40 ft - (12192 mm) |
|---|---|
| Foot | * 16 ft - (4877 mm) |
| Leech | * 42.28 ft - (12887 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 42.56 ft - (12972 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 328.6 ft² |
| Edit in Calculator | |
Roberts Spray 370A - JIBSAIL
| Luff | * 39.23 ft - (11957 mm) |
|---|---|
| Foot | * 23.12 ft - (7047 mm) |
| Leech | * 33.24 ft - (10132 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 19.55 ft - (5959 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 383.43 ft² |
| Edit in Calculator | |
Roberts Spray 370A - GENOA
| Luff | * 46.59 ft - (14201 mm) |
|---|---|
| Foot | * 27.97 ft - (8525 mm) |
| Leech | * 43.38 ft - (13222 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 25.5 ft - (7772 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 593.99 ft² |
| Edit in Calculator | |
Roberts Spray 370A - GENOA
| Luff | 46.5 ft - (14173 mm) |
|---|---|
| Foot | * 24.91 ft - (7593 mm) |
| Leech | * 43.38 ft - (13222 mm) |
| Percentage LP | 135 % |
| Length Perpendicular | * 22.95 ft - (6995 mm) |
| Deck Angle | * 2.6 ° |
| Area | * 533.57 ft² |
| Edit in Calculator | |
Roberts Spray 370A - STAYSAIL
| Luff | 34.67 ft - (10567 mm) |
|---|---|
| Foot | 12 ft - (3658 mm) |
| Leech | 31 ft - (9449 mm) |
| Length Perpendicular | * 10.64 ft - (3243 mm) |
| Deck Angle | * 5 ° |
| Area | * 184.41 ft² |
| Edit in Calculator | |
