Roberts 64
Description

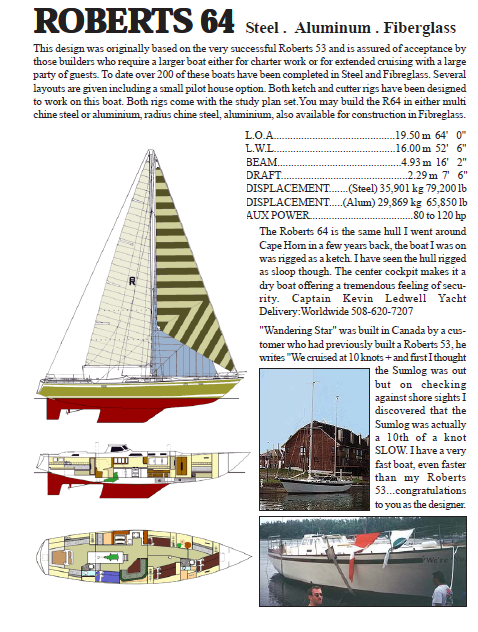

Bruce Roberts 64 Sailboat The Bruce Roberts 64 is a spacious, heavy-displacement cruising ketch or cutter designed by Bruce Roberts-Goodson in the 1980s, scaled up from the proven Roberts 53 for extended bluewater voyages, liveaboard comfort, or charter operations accommodating large groups, with over 200 examples completed worldwide in steel, aluminum, or fiberglass, many logging hundreds of thousands of ocean miles. Featuring a robust multi-chine or radius-chine hull for DIY builders, it offers exceptional stability and light-air performance via a generous sail plan, customizable layouts including an optional small pilothouse, aft master suite with king-size berth, grand salon, and flexible accommodations for 8–10+ berths, powered by an 80–120 hp diesel auxiliary; plans from bruceroberts.com or finelineboatplans.com include full construction drawings, material lists, and rigging options for ketch or cutter setups, with build costs estimated at $300,000–$600,000 depending on materials.
The standard boat dimensions
| i | 70 ft |
|---|---|
| j | 25.67 ft |
| p | 65.25 ft |
| e | 20.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 70 ft | 25.67 ft | 65.25 ft | 20.75 ft | - | - | - | - |
Documents
Sails
Roberts 64 - MAINSAIL
| Luff | * 65.25 ft - (19888 mm) |
|---|---|
| Foot | * 20.75 ft - (6325 mm) |
| Leech | * 67.62 ft - (20611 mm) |
| Tack Angle | * 87.98 ° |
| Diagonal | * 67.77 ft - (20656 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 676.35 ft² |
| Edit in Calculator | |
Roberts 64 - JIBSAIL
| Luff | * 59.65 ft - (18181 mm) |
|---|---|
| Foot | * 34.86 ft - (10625 mm) |
| Leech | * 50.61 ft - (15426 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 29.52 ft - (8998 mm) |
| Deck Angle | * 12 ° |
| Area | 880.44 ft² |
| Edit in Calculator | |
Roberts 64 - GENOA
| Luff | * 70.83 ft - (21589 mm) |
|---|---|
| Foot | * 42.19 ft - (12860 mm) |
| Leech | * 65.98 ft - (20111 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 38.51 ft - (11738 mm) |
| Deck Angle | * 4 ° |
| Area | 1363.57 ft² |
| Edit in Calculator | |
Roberts 64 - SPINNAKER
| Stays | * 70.83 ft - (21589 mm) |
|---|---|
| MidGirth | * 46.21 ft - (14085 mm) |
| Foot | * 46.21 ft - (14085 mm) |
| Perc LP | * 180 % |
| Area | 2782.1 ft² |
| Edit in Calculator | |
