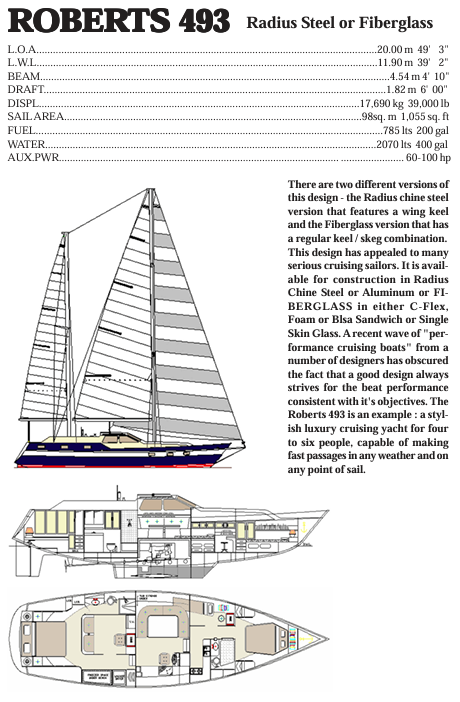

Roberts 493
Description
The ROBERTS 493 is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 55 ft |
|---|---|
| j | 18.17 ft |
| p | 49 ft |
| e | 15.75 ft |
| p2 | 33.25 ft |
| e2 | 10.50 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 55 ft | 18.17 ft | 49 ft | 15.75 ft | 33.25 ft | 10.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 49 ft - (14935 mm) |
| Foot | * 15.75 ft - (4801 mm) |
| Leech | * 50.79 ft - (15481 mm) |
| Tack Angle | * 87.99 ° |
| Diagonal | * 50.94 ft - (15527 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 385.48 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 46.34 ft - (14124 mm) |
| Foot | * 24.2 ft - (7376 mm) |
| Leech | * 40.03 ft - (12201 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.9 ft - (6370 mm) |
| Deck Angle | * 12 ° |
| Area | 484.26 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 55.03 ft - (16773 mm) |
| Foot | * 29.45 ft - (8976 mm) |
| Leech | * 51.64 ft - (15740 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 27.26 ft - (8309 mm) |
| Deck Angle | * 4 ° |
| Area | 749.82 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 55.03 ft - (16773 mm) |
| MidGirth | * 32.71 ft - (9970 mm) |
| Foot | * 32.71 ft - (9970 mm) |
| Perc LP | * 180 % |
| Area | 1530.03 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
