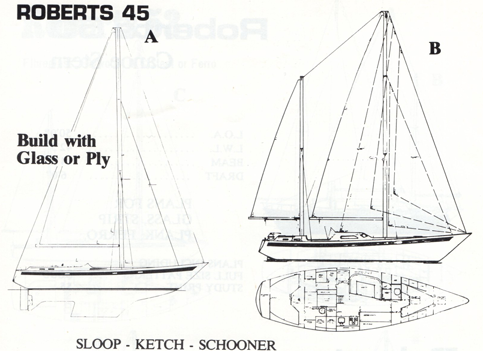

Roberts 45
Description
The Roberts 45 is a renowned fiberglass cruising sailboat design by Australian naval architect Bruce Roberts, first introduced in the 1970s and still highly regarded for bluewater voyages despite its vintage status. Built worldwide as both custom and production models—most notably by Fortuna Yachts in South Africa—this 43-foot-8-inch (LOA) cutter-rigged ketch features a long keel for stability, a beam of 13 feet 3 inches, a draft of 6 feet, and a displacement of approximately 28,928 pounds with 10,500 pounds of ballast, enabling it to handle heavy weather while providing comfortable accommodations for couples or small families, including 6 feet 3 inches of headroom and versatile interior layouts. Its sail area of 821 square feet supports efficient performance under sail, complemented by a 40- to 80-horsepower auxiliary engine, and construction options like C-Flex, single-skin, or foam sandwich methods ensure durability for global circumnavigations, as evidenced by its proven track record in long-distance races and extended cruises across oceans from the Caribbean to Australia.
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 45.000 ft |
| LOA | 34.416 ft |
| LWL | 28.750 ft |
| Beam | 11.583 ft |
| Max Draft | 5.750 ft |
| Min Draft | 4.250 ft |
The standard boat dimensions
| i | 46.75 ft |
|---|---|
| j | 16.17 ft |
| p | 43.83 ft |
| e | 14.58 ft |
| p2 | 20 ft |
| e2 | 18 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 46.75 ft | 16.17 ft | 43.83 ft | 14.58 ft | 20 ft | 18 ft | - | - |
Documents
Sails
Roberts 45 - MAINSAIL
| Luff | * 43.83 ft - (13359 mm) |
|---|---|
| Foot | * 14.58 ft - (4444 mm) |
| Leech | * 45.44 ft - (13850 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 45.71 ft - (13932 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 328.92 ft² |
| Edit in Calculator | |
Roberts 45 - JIBSAIL
| Luff | * 39.57 ft - (12061 mm) |
|---|---|
| Foot | * 21.71 ft - (6617 mm) |
| Leech | * 33.91 ft - (10336 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 18.59 ft - (5666 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 367.83 ft² |
| Edit in Calculator | |
Roberts 45 - GENOA
| Luff | 53.477 ft - (16300 mm) |
|---|---|
| Foot | 23.294 ft - (7100 mm) |
| Leech | 50.852 ft - (15500 mm) |
| Percentage LP | * 136.12 % |
| Length Perpendicular | * 22.01 ft - (6709 mm) |
| Deck Angle | * 0.05 ° |
| Area | * 588.45 ft² |
| Edit in Calculator | |
Roberts 45 - GENOA
| Luff | * 46.99 ft - (14323 mm) |
|---|---|
| Foot | * 26.37 ft - (8038 mm) |
| Leech | * 43.96 ft - (13399 mm) |
| Percentage LP | * 150.03 % |
| Length Perpendicular | * 24.26 ft - (7394 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 570.03 ft² |
| Edit in Calculator | |
Roberts 45 - SPINNAKER
| Stays | * 46.99 ft - (14323 mm) |
|---|---|
| MidGirth | * 29.11 ft - (8873 mm) |
| Foot | * 29.11 ft - (8873 mm) |
| Perc LP | * 180 % |
| Area | * 1163 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
