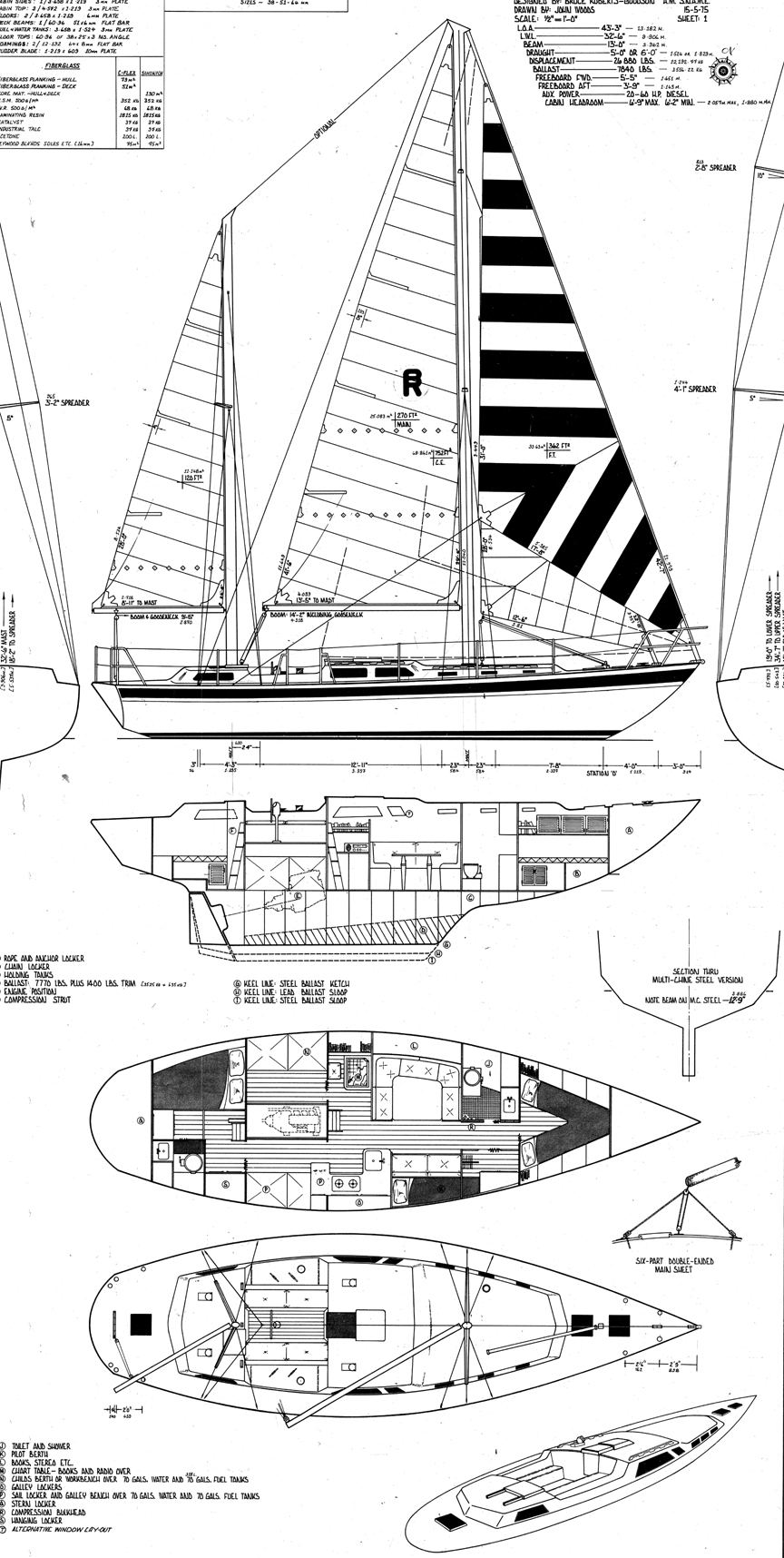

Roberts 43 (Mauritius 43)
Description
The Bruce Roberts Mauritius 43, designed in 1969 by Australian naval architect Bruce Roberts, is one of the most prolific and beloved bluewater cruising sailboats ever penned—with nearly 2,000 examples built worldwide to basic plans. It's a center-cockpit cruiser renowned for its spacious accommodations, seaworthiness, and versatility for long-distance voyaging, coastal hopping, or liveaboard life. The design draws from traditional lines with a moderate overhang, full bow and stern for a buoyant ride in swells, and a long fin keel for stability. Early builds (especially shallow-draft ketches) had minor downwind steering quirks, but these were addressed with free or low-cost modification drawings from Roberts. A flush-deck variant, the Norfolk 43, offers a sleeker profile while sharing the same hull and rig options. Construction appeals to owner-builders: round-bilge fiberglass or wood/epoxy for smooth hulls, or multi-chine steel/aluminum for rugged, low-maintenance strength. Interiors are highly customizable, often featuring teak joinery, with layouts supporting 6–8 berths across three cabins (forward V-berth, saloon settees, large aft master). Rig options include cutter (most common for balanced sail handling), ketch (for easier short-handed reefing), or sloop (simpler for racing/light cruising).
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 43.000 ft |
| LWL | 16.570 ft |
| Beam | 7.083 ft |
| Max Draft | 3.600 ft |
| Min Draft | 0.803 ft |
The standard boat dimensions
| i | 55 ft |
|---|---|
| j | 18 ft |
| p | 50 ft |
| e | 15.75 ft |
| p2 | 20 ft |
| e2 | 18 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 55 ft | 18 ft | 50 ft | 15.75 ft | 20 ft | 18 ft | - | - |
Documents
Blueprints2>
Sails
Roberts 43 (Mauritius 43) - MAINSAIL
| Luff | * 50 ft - (15240 mm) |
|---|---|
| Foot | * 15.75 ft - (4801 mm) |
| Leech | * 51.63 ft - (15737 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 51.9 ft - (15819 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 404.4 ft² |
| Edit in Calculator | |
Roberts 43 (Mauritius 43) - JIBSAIL
| Luff | * 46.3 ft - (14112 mm) |
|---|---|
| Foot | * 23.93 ft - (7294 mm) |
| Leech | * 40.06 ft - (12210 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 20.7 ft - (6309 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 479.24 ft² |
| Edit in Calculator | |
Roberts 43 (Mauritius 43) - GENOA
| Luff | 54 ft - (16459 mm) |
|---|---|
| Foot | 25.5 ft - (7772 mm) |
| Leech | 50 ft - (15240 mm) |
| Percentage LP | * 130.61 % |
| Length Perpendicular | * 23.51 ft - (7166 mm) |
| Deck Angle | * 4.66 ° |
| Area | * 634.8 ft² |
| Edit in Calculator | |
Roberts 43 (Mauritius 43) - ASYMMETRICAL
| Luff | 56 ft - (17069 mm) |
|---|---|
| Foot | 31.5 ft - (9601 mm) |
| Leech | 52 ft - (15850 mm) |
| Perc LP | * 165 % |
| Area | * 1323 ft² |
| Edit in Calculator | |
