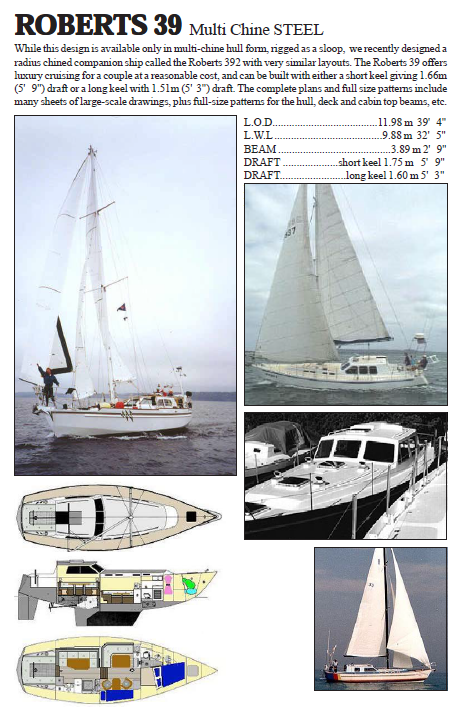

Roberts 39
Description
The Bruce Roberts 39 is a classic heavy-displacement cruising cutter (or sloop/ketch) designed by Bruce Roberts-Goodson in the 1970s, renowned for its robust multi-chine hull providing exceptional seaworthiness and stability for bluewater passages or extended coastal voyages, with hundreds built worldwide as affordable DIY projects emphasizing luxury accommodations for a couple or small family. Featuring a full or long keel for directional stability and a generous beam for interior volume, it's optimized for steel or aluminum construction with options for short (5'9") or long (5'3") draft, delivering balanced performance under a powerful sail plan suitable for light to moderate winds, powered by a typical 30–40 hp diesel auxiliary; plans from bruceroberts.com include full-size patterns, engineering drawings, and over 50 photos, with build costs around $80,000–$150,000.
The standard boat dimensions
| i | 54 ft |
|---|---|
| j | 16.29 ft |
| p | 47 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 54 ft | 16.29 ft | 47 ft | 16 ft | - | - | - | - |
Documents
Sails
Roberts 39 - MAINSAIL
| Luff | * 47 ft - (14326 mm) |
|---|---|
| Foot | * 16 ft - (4877 mm) |
| Leech | * 48.96 ft - (14923 mm) |
| Tack Angle | * 88.01 ° |
| Diagonal | * 49.12 ft - (14972 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 375.62 ft² |
| Edit in Calculator | |
Roberts 39 - JIBSAIL
| Luff | * 45.12 ft - (13753 mm) |
|---|---|
| Foot | * 21.38 ft - (6517 mm) |
| Leech | * 39.55 ft - (12055 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 18.73 ft - (5709 mm) |
| Deck Angle | * 12 ° |
| Area | 422.77 ft² |
| Edit in Calculator | |
Roberts 39 - GENOA
| Luff | * 53.58 ft - (16331 mm) |
|---|---|
| Foot | * 26.14 ft - (7967 mm) |
| Leech | * 50.6 ft - (15423 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 24.44 ft - (7449 mm) |
| Deck Angle | * 4 ° |
| Area | 654.74 ft² |
| Edit in Calculator | |
Roberts 39 - SPINNAKER
| Stays | * 53.58 ft - (16331 mm) |
|---|---|
| MidGirth | * 29.32 ft - (8937 mm) |
| Foot | * 29.32 ft - (8937 mm) |
| Perc LP | * 180 % |
| Area | 1335.32 ft² |
| Edit in Calculator | |
