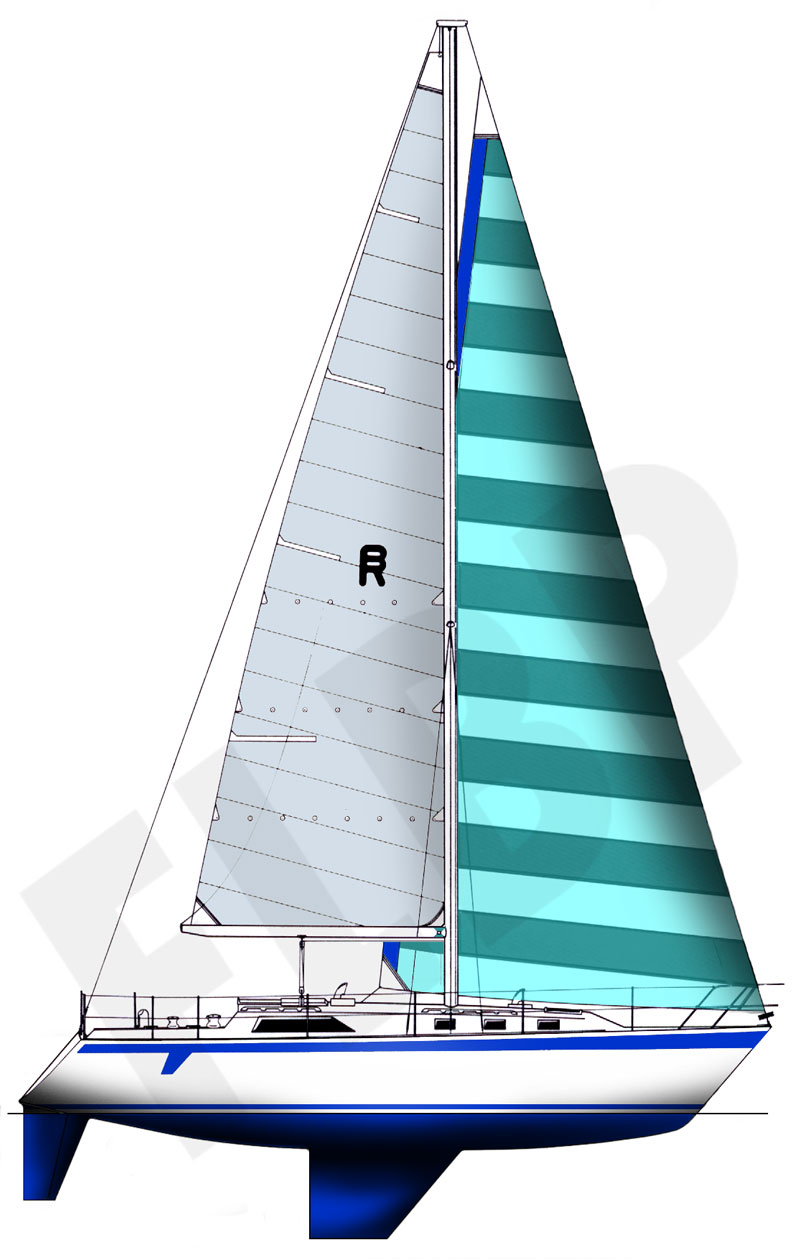

Roberts 345
Description
The Bruce Roberts 345, designed in the 1980s by renowned Australian naval architect Bruce Roberts, is a versatile and affordable bluewater cruising sailboat tailored for owner-builders seeking a balance of seaworthiness, spacious accommodations, and ease of handling for coastal or offshore voyages. With a moderate-displacement hull featuring a fin keel (shoal or deep options) and skeg-hung rudder, it offers forgiving performance in varied conditions, drawing from Roberts' philosophy of simple, strong construction using multi-chine or radius-chine methods. Popular for its customizable interiors—typically including a V-berth forward, U-shaped galley, saloon settees, and a large aft cabin with quarter berth—it sleeps 4–6 comfortably under 6'2" headroom, making it ideal for couples or small families on extended cruises. Rigged as a sloop (standard) or ketch for short-handed sailing, the 345 has proven itself in global passages, with hundreds built in steel, aluminum, fiberglass, or wood/epoxy. Its low-aspect rig and heavy ballast provide stability without excessive weather helm, though it favors comfort over speed in light winds.
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 34.000 ft |
| LWL | 16.570 ft |
| Beam | 7.083 ft |
| Max Draft | 3.600 ft |
| Min Draft | 0.803 ft |
The standard boat dimensions
| i | 44 ft |
|---|---|
| j | 14 ft |
| p | 39 ft |
| e | 12 ft |
| p2 | 20 ft |
| e2 | 18 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 44 ft | 14 ft | 39 ft | 12 ft | 20 ft | 18 ft | - | - |
Documents
Sails
Roberts 345 - MAINSAIL
| Luff | * 39 ft - (11887 mm) |
|---|---|
| Foot | * 12 ft - (3658 mm) |
| Leech | * 40.27 ft - (12274 mm) |
| Tack Angle | * 87.99 ° |
| Diagonal | * 40.4 ft - (12314 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | 233.75 ft² |
| Edit in Calculator | |
Roberts 345 - JIBSAIL
| Luff | * 36.94 ft - (11259 mm) |
|---|---|
| Foot | * 18.53 ft - (5648 mm) |
| Leech | * 32.1 ft - (9784 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 16.1 ft - (4907 mm) |
| Deck Angle | * 12 ° |
| Area | 297.4 ft² |
| Edit in Calculator | |
Roberts 345 - GENOA
| Luff | * 43.86 ft - (13369 mm) |
|---|---|
| Foot | * 22.59 ft - (6885 mm) |
| Leech | * 41.27 ft - (12579 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 21 ft - (6401 mm) |
| Deck Angle | * 4 ° |
| Area | 460.48 ft² |
| Edit in Calculator | |
Roberts 345 - SPINNAKER
| Stays | * 43.86 ft - (13369 mm) |
|---|---|
| MidGirth | * 25.2 ft - (7681 mm) |
| Foot | * 25.2 ft - (7681 mm) |
| Perc LP | * 180 % |
| Area | 939.48 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
