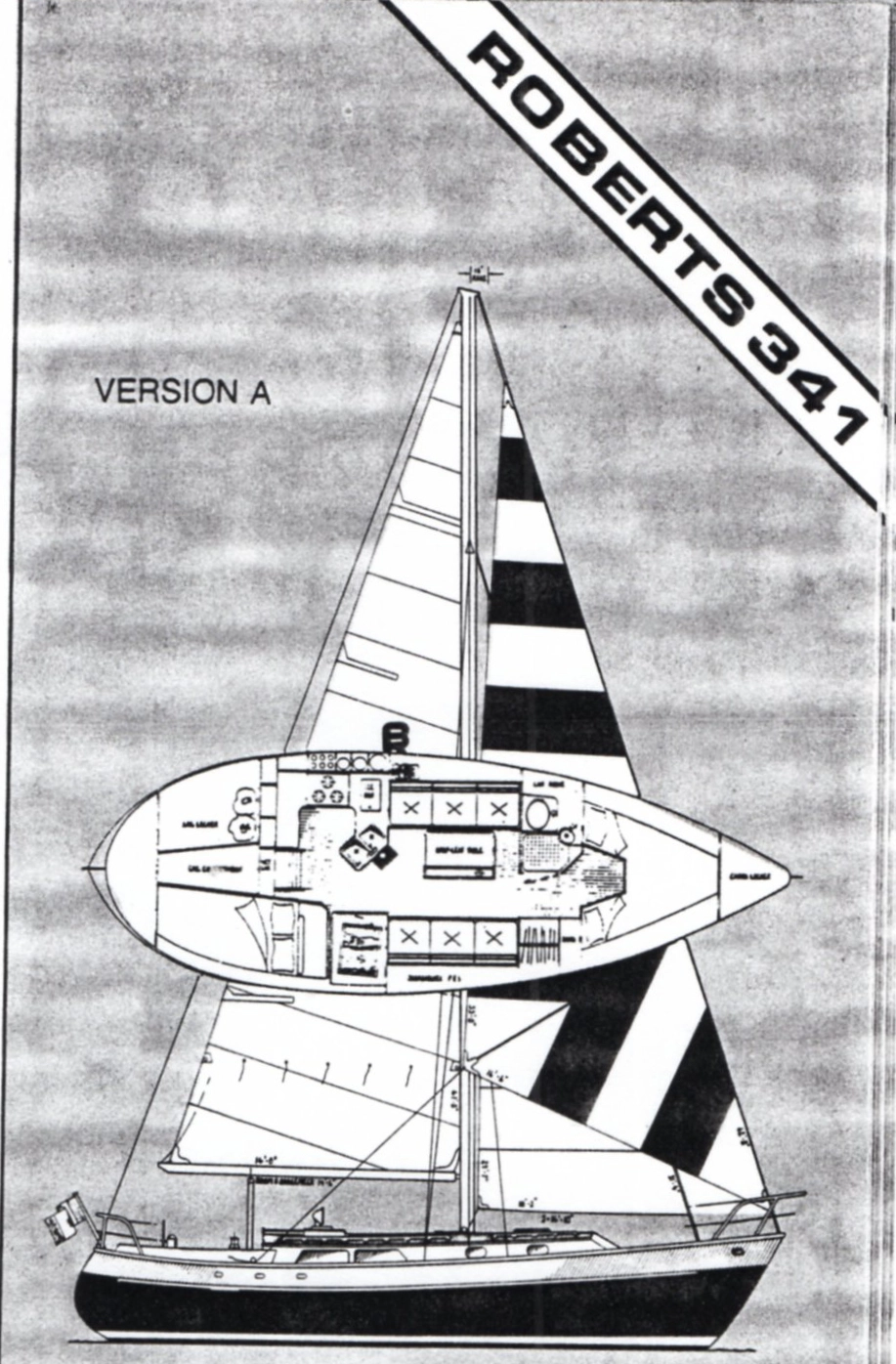

Roberts 341
Description
The Bruce Roberts 341, a robust double-ender bluewater cruiser designed in the 1980s by Australian naval architect Bruce Roberts (with refinements by Grahame Shannon), embodies classic seaworthiness for offshore passages or coastal cruising, featuring a canoe stern, long fin or full keel (shoal draft ~5'0"), and skeg-hung rudder for stability and protection, rigged as a sloop or cutter with a generous 621 square feet of sail area yielding a moderate SA/D ratio of ~16 for balanced short-handed handling under a fractional rig (I=47.0 ft, J=14.8 ft, P=41.0 ft, E=14.0 ft). Measuring 34 feet overall (10.36 m LOA), 29 feet waterline (8.84 m LWL), 11 feet 6 inches beam (3.51 m), and 15,000-pound displacement (6,804 kg) with 6,000 pounds of ballast (2,722 kg), it offers customizable fiberglass construction (foam-cored for strength) or steel/wood-epoxy alternatives, with two layouts: aft-cockpit for open-air sailing or pilothouse for all-weather protection, accommodating 4–6 in a practical interior (V-berth forward, U-galley, saloon settees, aft cabin) under 6'2" headroom, powered by a 25–40 hp diesel auxiliary and tanks holding 80 gallons water/40 gallons fuel.
Construction Details
| Designer | Bruce Roberts-Goodson |
|---|---|
| Length | 34.000 ft |
| LWL | 29.000 ft |
| Beam | 11.500 ft |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 47 ft |
|---|---|
| j | 14.83 ft |
| p | 41 ft |
| e | 14 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 47 ft | 14.83 ft | 41 ft | 14 ft | - | - | - | - |
Sails
Roberts 341 - MAINSAIL
| Luff | * 41 ft - (12497 mm) |
|---|---|
| Foot | * 14 ft - (4267 mm) |
| Leech | * 42.59 ft - (12981 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 42.86 ft - (13064 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 295.82 ft² |
| Edit in Calculator | |
Roberts 341 - GENOA
| Luff | 45.75 ft - (13945 mm) |
|---|---|
| Foot | 20.75 ft - (6325 mm) |
| Leech | 43 ft - (13106 mm) |
| Percentage LP | * 130.82 % |
| Length Perpendicular | * 19.4 ft - (5913 mm) |
| Deck Angle | * 3.3 ° |
| Area | * 443.68 ft² |
| Edit in Calculator | |
Roberts 341 - ASYMMETRICAL
| Luff | 47 ft - (14326 mm) |
|---|---|
| Foot | 25 ft - (7620 mm) |
| Leech | 44 ft - (13411 mm) |
| Perc LP | * 165 % |
| Area | * 881 ft² |
| Edit in Calculator | |
Roberts 341 - SPINNAKER
| Stays | * 46.82 ft - (14271 mm) |
|---|---|
| MidGirth | * 26.69 ft - (8135 mm) |
| Foot | * 26.69 ft - (8135 mm) |
| Perc LP | * 180 % |
| Area | * 1062 ft² |
| Edit in Calculator | |
Roberts 341 - YANKEE
| Luff | 42 ft - (12802 mm) |
|---|---|
| Foot | 16.5 ft - (5029 mm) |
| Leech | 33 ft - (10058 mm) |
| Area | * 252.95 ft² |
| Edit in Calculator | |
Roberts 341 - STAYSAIL
| Luff | 31.33 ft - (9549 mm) |
|---|---|
| Foot | 10.17 ft - (3100 mm) |
| Leech | 29.58 ft - (9016 mm) |
| Length Perpendicular | 9.6 ft - (2926 mm) |
| Area | * 150.41 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
