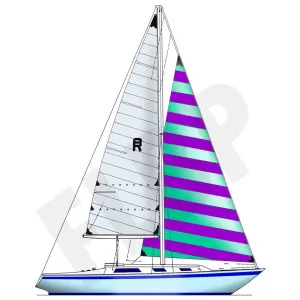

Roberts 34
Description
The Bruce Roberts 34, a robust and versatile bluewater cruiser designed in the 1970s by Australian naval architect Bruce Roberts (with production refinements by Grahame Shannon), stands as a heavy-displacement workhorse for offshore passages and coastal exploration, distinct from the Spray series with its fin-keel hull, skeg-hung rudder, and cutter or sloop rig for balanced, short-handed sailing under 625 square feet of canvas; measuring 34 feet 4 inches overall (10.46 m LOA), 28 feet 8 inches waterline (8.74 m LWL), 11 feet 6 inches beam (3.50 m), 5 feet 6 inches draft (1.68 m, shoal 5 feet), and 15,750-pound displacement (7,144 kg) with 6,400 pounds of ballast (2,903 kg) yielding a low SA/D ratio of 16 for easy handling in 30-knot winds, it's constructed in fiberglass (Airex-cored for strength) or steel/wood by DIY builders, featuring a spacious interior with 6 feet 2 inches headroom, six berths (V-berth forward, saloon settees, aft cabin), U-galley, and ample tanks (110 gallons water, 56 gallons fuel) powered by a 27-hp Yanmar diesel. Renowned for its seaworthiness—proven in ocean crossings with a comfort ratio of 31, capsize screening of 1.84, and hull speed of 7.2 knots—this affordable design (build costs $40,000–$90,000 USD) excels in stability and load-carrying but may feel sluggish in light airs; variants like the pilothouse Coast 34 or Passage 34 add versatility, with plans available from bruceroberts.com
The standard boat dimensions
| i | 38.33 ft |
|---|---|
| j | 13 ft |
| p | 31.67 ft |
| e | 10.42 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 38.33 ft | 13 ft | 31.67 ft | 10.42 ft | - | - | - | - |
Documents
Blueprints
Sails
Roberts 34 - MAINSAIL
| Luff | * 31.67 ft - (9653 mm) |
|---|---|
| Foot | * 10.42 ft - (3176 mm) |
| Leech | * 32.79 ft - (9994 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 32.99 ft - (10055 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 170.12 ft² |
| Edit in Calculator | |
Roberts 34 - JIBSAIL
| Luff | * 32.38 ft - (9869 mm) |
|---|---|
| Foot | * 17.4 ft - (5304 mm) |
| Leech | * 27.83 ft - (8483 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.95 ft - (4557 mm) |
| Deck Angle | * 12.05 ° |
| Area | * 242.01 ft² |
| Edit in Calculator | |
Roberts 34 - JIBSAIL
| Luff | 37 ft - (11278 mm) |
|---|---|
| Foot | 20 ft - (6096 mm) |
| Leech | 37 ft - (11278 mm) |
| Percentage LP | * 148.15 % |
| Length Perpendicular | * 19.26 ft - (5870 mm) |
| Deck Angle | * -3.05 ° |
| Area | * 356.23 ft² |
| Edit in Calculator | |
Roberts 34 - GENOA
| Luff | * 38.45 ft - (11720 mm) |
|---|---|
| Foot | * 21.14 ft - (6443 mm) |
| Leech | * 36.02 ft - (10979 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.5 ft - (5944 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 374.88 ft² |
| Edit in Calculator | |
Roberts 34 - GENOA
| Luff | 37 ft - (11278 mm) |
|---|---|
| Foot | 20 ft - (6096 mm) |
| Leech | 34 ft - (10363 mm) |
| Percentage LP | * 140 % |
| Length Perpendicular | * 18.2 ft - (5547 mm) |
| Deck Angle | * 5.73 ° |
| Area | * 336.77 ft² |
| Edit in Calculator | |
Roberts 34 - DRIFTER
| Luff | * 38.45 ft - (11720 mm) |
|---|---|
| Foot | * 22.03 ft - (6715 mm) |
| Leech | * 34.29 ft - (10452 mm) |
| Perc LP | * 150 % |
| Length Perp | * 19.5 ft - (5944 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 374.93 ft² |
| Edit in Calculator | |
Roberts 34 - ASYMMETRICAL
| Luff | * 38.45 ft - (11720 mm) |
|---|---|
| Foot | * 21.45 ft - (6538 mm) |
| Leech | * 35.37 ft - (10781 mm) |
| Perc LP | * 165 % |
| Area | * 619 ft² |
| Edit in Calculator | |
Roberts 34 - STORMJIB
| Luff | * 22.26 ft - (6785 mm) |
|---|---|
| Foot | * 9.86 ft - (3005 mm) |
| Leech | * 16.95 ft - (5166 mm) |
| Perc LP | * 54.46 % |
| Length Perp | * 7.08 ft - (2158 mm) |
| Deck Angle | * 25.35 ° |
| Area | * 78.82 ft² |
| Edit in Calculator | |
Roberts 34 - STORMTRYSAIL
| Luff | * 11.75 ft - (3581 mm) |
|---|---|
| Foot | * 10.8 ft - (3292 mm) |
| Leech | * 9.79 ft - (2984 mm) |
| Length Perp | * 9.79 ft - (2984 mm) |
| Tack Angle | * -25 ° |
| Area | * 49 ft² |
| Edit in Calculator | |
