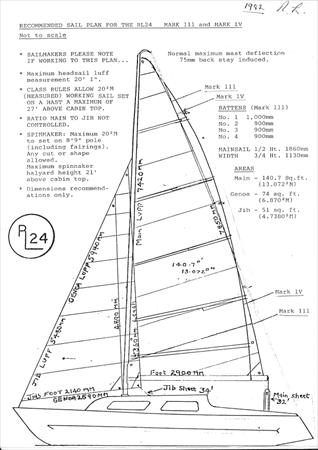

Rl 24 Mark Iii
Description
1540 lb
The standard boat dimensions
| i | 21 ft |
|---|---|
| j | 7.75 ft |
| p | 24.34 ft |
| e | 9.51 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 21 ft | 7.75 ft | 24.34 ft | 9.51 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 24.36 ft - (7425 mm) |
| Foot | 9.52 ft - (2902 mm) |
| Leech-AftHdBd | * 25.56 ft - (7791 mm) |
| Tack Ang | * 87.54 ° |
| Diag (clew/head) | 25.77 ft - (7855 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 119.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 17.99 ft - (5483 mm) |
| Foot | 7.02 ft - (2140 mm) |
| Leech | 16.05 ft - (4892 mm) |
| Deck Angle | * 9.71 ° |
| Area | * 56.18 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 19.5 ft - (5944 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | 17.6 ft - (5364 mm) |
| Percentage LP | * 98.97 % |
| Length Perpendicular | * 7.67 ft - (2338 mm) |
| Deck Angle | * 5.25 ° |
| Area | * 74.8 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 22.25 ft - (6782 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Perc LP | * 165 % |
| Area | * 225 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 21.613 ft - (6588 mm) |
| MidGirth | 15.75 ft - (4801 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Perc LP | * 180 % |
| Area | * 289 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
