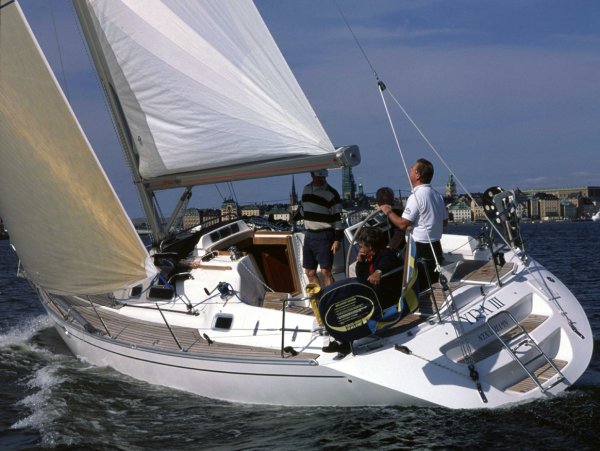

Ridas 35
Description
The Ridas 35 is a mid-sized cruiser designed by Guy-Christer Lönngren. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Guy-Christer Lönngren |
|---|---|
| Length | 34.600 ft |
| LOA | 34.600 ft |
| LWL | 30.840 ft |
| Beam | 11.480 ft |
| Displacement | 13007 lb |
| Max Draft | 6.430 ft |
The standard boat dimensions
| i | 44.85 ft |
|---|---|
| j | 14.44 ft |
| p | 45.64 ft |
| e | 13.78 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 44.85 ft | 14.44 ft | 45.64 ft | 13.78 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45.64 ft - (13911 mm) |
| Foot | * 13.78 ft - (4200 mm) |
| Leech | * 46.94 ft - (14307 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 47.21 ft - (14390 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 324.18 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 37.69 ft - (11488 mm) |
| Foot | * 19.14 ft - (5834 mm) |
| Leech | * 32.69 ft - (9964 mm) |
| Percentage LP | * 114.99 % |
| Length Perpendicular | * 16.6 ft - (5060 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 312.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 43.5 ft - (13259 mm) |
| Foot | 15.92 ft - (4852 mm) |
| Leech | 39.75 ft - (12116 mm) |
| Percentage LP | * 100.65 % |
| Length Perpendicular | * 14.53 ft - (4429 mm) |
| Deck Angle | * 6.26 ° |
| Area | * 316.07 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 44.76 ft - (13643 mm) |
| Foot | * 23.32 ft - (7108 mm) |
| Leech | * 42.09 ft - (12829 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 21.65 ft - (6599 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 484.53 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 44.76 ft - (13643 mm) |
| Foot | * 23.32 ft - (7108 mm) |
| Leech | * 42.09 ft - (12829 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 21.65 ft - (6599 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 484.53 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 44.76 ft - (13643 mm) |
| Foot | * 23.82 ft - (7260 mm) |
| Leech | * 41.18 ft - (12552 mm) |
| Perc LP | * 165 % |
| Area | * 800 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
