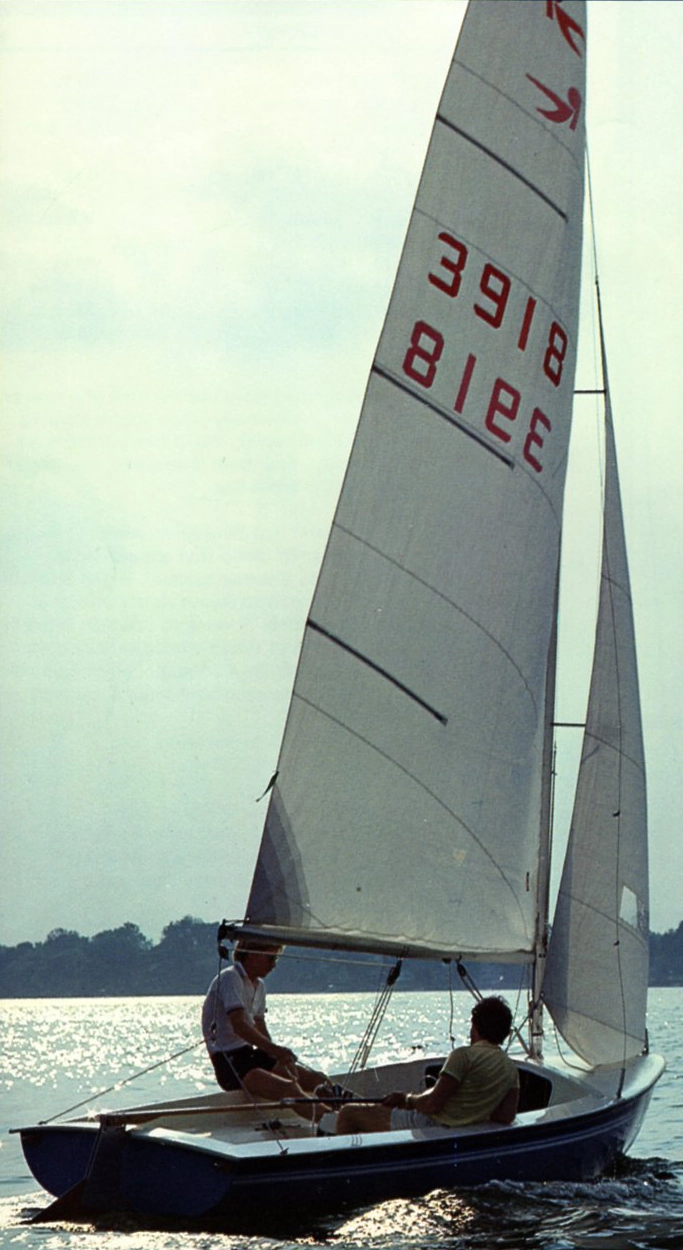

Rebel 16
Description
600 lbs. Beam - 6' 7 1/2" Draft - 3' 6"
Construction Details
| Designer | Ray Greene |
|---|---|
| Length | 16.100 ft |
| LOA | 16.100 ft |
| LWL | 30.160 ft |
| Beam | 6.620 ft |
| Displacement | 700 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | 18 ft |
|---|---|
| j | 4.25 ft |
| p | 22.29 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 18 ft | 4.25 ft | 22.29 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 22.25 ft - (6782 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech-AftHdBd | * 23.59 ft - (7190 mm) |
| Tack Ang | * 84.35 ° |
| Diag (clew/head) | 23.83 ft - (7263 mm) |
| Head (inches) | 5 in |
| Area (no Roach) | * 125.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 7 ft - (2134 mm) |
| Leech | 13.5 ft - (4115 mm) |
| Percentage LP | * 148.24 % |
| Length Perpendicular | * 6.3 ft - (1920 mm) |
| Deck Angle | * 12.62 ° |
| Area | * 47.22 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
