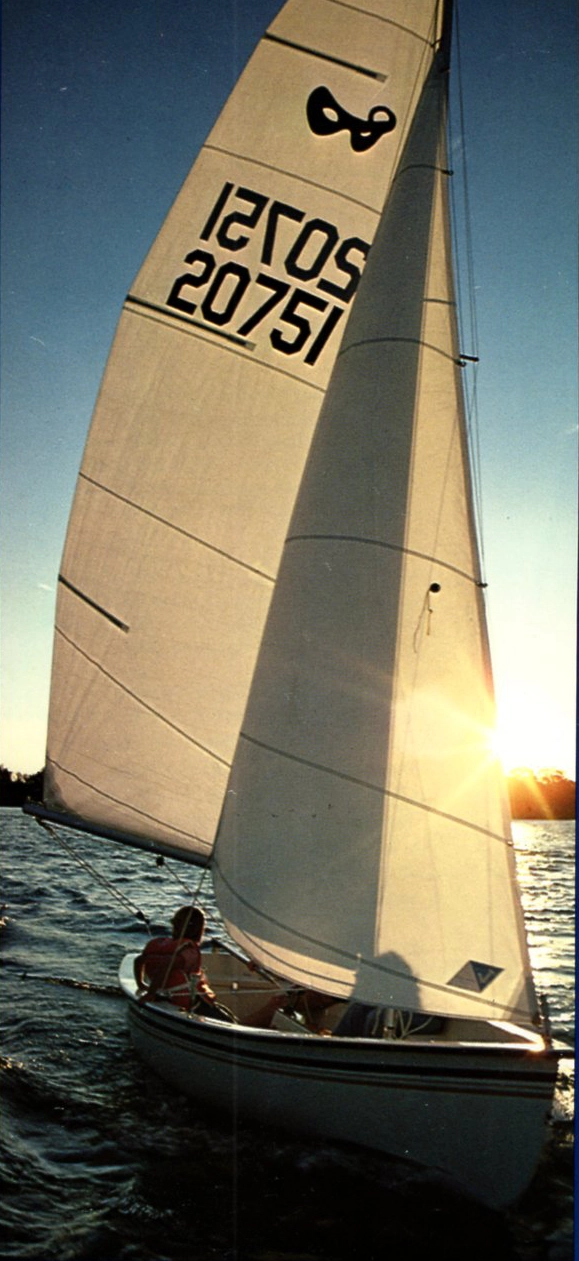

Rascal
Description
The RASCAL is a dinghy. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 14.000 ft |
| LOA | 14.420 ft |
| LWL | 13.830 ft |
| Beam | 6.000 ft |
| Displacement | 400 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.920 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 17.75 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 17.75 ft | 8.50 ft | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 17.75 ft - (5410 mm) |
| Foot | 8.5 ft - (2591 mm) |
| Leech | * 19.48 ft - (5938 mm) |
| Tack Angle | * 89.92 ° |
| Diagonal | 19.67 ft - (5995 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 78.12 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 15.5 ft - (4724 mm) |
| Foot | 6.83 ft - (2082 mm) |
| Leech | 15 ft - (4572 mm) |
| Length Perpendicular | 6.53 ft - (1990 mm) |
| Area | * 50.62 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
