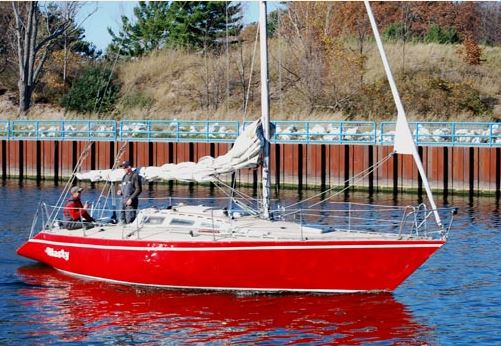

Poitin 36 One Ton
Description
The POITIN 36 ONE TON is a sailboat. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 40 ft |
|---|---|
| j | 13.50 ft |
| p | 44 ft |
| e | 14.70 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 40 ft | 13.50 ft | 44 ft | 14.70 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 44 ft - (13411 mm) |
| Foot | * 14.7 ft - (4481 mm) |
| Leech | * 45.74 ft - (13942 mm) |
| Tack Angle | * 87.99 ° |
| Diagonal | * 45.9 ft - (13990 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 323.05 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.77 ft - (10293 mm) |
| Foot | * 18.05 ft - (5502 mm) |
| Leech | * 29.06 ft - (8857 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.53 ft - (4734 mm) |
| Deck Angle | * 12 ° |
| Area | 262.16 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 40.11 ft - (12226 mm) |
| Foot | * 21.94 ft - (6687 mm) |
| Leech | * 37.58 ft - (11454 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.25 ft - (6172 mm) |
| Deck Angle | * 4 ° |
| Area | 406.06 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 40.11 ft - (12226 mm) |
| MidGirth | * 24.3 ft - (7407 mm) |
| Foot | * 24.3 ft - (7407 mm) |
| Perc LP | * 180 % |
| Area | 828.47 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
