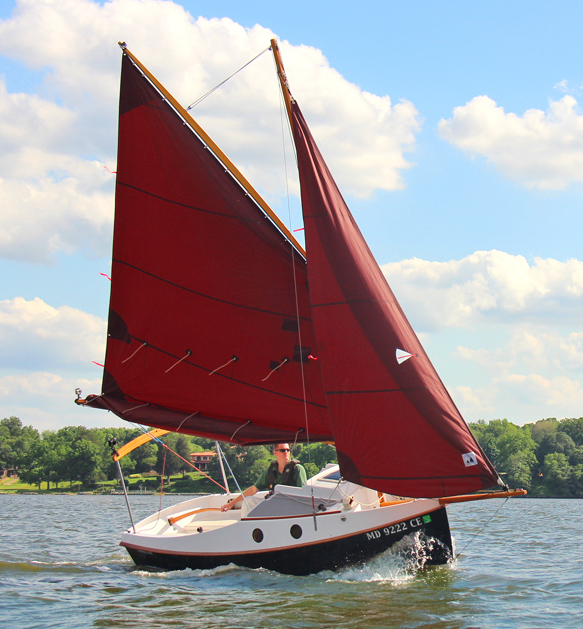

Pocketship
Description
Gaff Rigged Main. Beam: 75", Rowing Draft: 16", Sailing Draft: 36, Sail Area: 148ft, Hull Wt: 800 lbs.
Construction Details
| Designer | Chesapeake Light Craft |
|---|---|
| Length | 15.000 ft |
| LOA | 14.830 ft |
| LWL | 13.810 ft |
| Beam | 6.250 ft |
| Displacement | 800 lb |
| Max Draft | 3.000 ft |
| Min Draft | 1.330 ft |
The standard boat dimensions
| i | 12.39 ft |
|---|---|
| j | 6.10 ft |
| p | 17.07 ft |
| e | 11.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 12.39 ft | 6.10 ft | 17.07 ft | 11.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.719 ft - (4486 mm) |
| Foot | 6.104 ft - (1860 mm) |
| Leech | 12.385 ft - (3775 mm) |
| Percentage LP | * 82.95 % |
| Length Perpendicular | * 5.06 ft - (1542 mm) |
| Deck Angle | * 7.8 ° |
| Area | * 37.24 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 18.5 ft - (5639 mm) |
| Foot | 6.104 ft - (1860 mm) |
| Leech | 15.92 ft - (4852 mm) |
| Percentage LP | * 82.95 % |
| Length Perpendicular | * 5.06 ft - (1542 mm) |
| Deck Angle | * 7.72 ° |
| Area | * 46.85 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 16 ft - (4877 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 13.92 ft - (4243 mm) |
| Perc LP | * 165 % |
| Area | * 108 ft² |
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 7.65 ft - (2332 mm) |
| Foot | 11.4 ft - (3475 mm) |
| Leech | 16.25 ft - (4953 mm) |
| Tack Angle | * 88 ° |
| Diag (clew/throat) | * 13.51 ft - (4118 mm) |
| Head | 10 ft - (3048 mm) |
| Area | 109 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
