Piper 24 (Rustler 24)
Description
The Piper 24 (also known as the Piper One-Design or simply Piper) is a classic British 24-foot keelboat designed for one-design racing and day sailing. It was created in 1965–1966 by renowned naval architect David Boyd (famous for the America's Cup challenger Sovereign in 1964) and built primarily in the UK. The design draws direct inspiration from Boyd's 12-meter Sovereign, scaled down to a mini version with elegant classic lines: long overhangs, graceful sheer, cutaway full keel, and attached rudder for solid, predictable handling — the opposite of modern lightweight planing racers. It's built for traditional, seaworthy performance in varied conditions, often described as sturdy, forgiving, and rewarding to sail. Built mainly by Robertson Yard (Scotland) — about 57 hulls completed or finished there.
Construction Details
| Designer | David Boyd |
|---|---|
| Builder | Robertson Yard (Scotland) |
| Length | 24.000 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 25.83 ft |
| e | 11.58 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 25.83 ft | 11.58 ft | - | - | - | - |
Documents

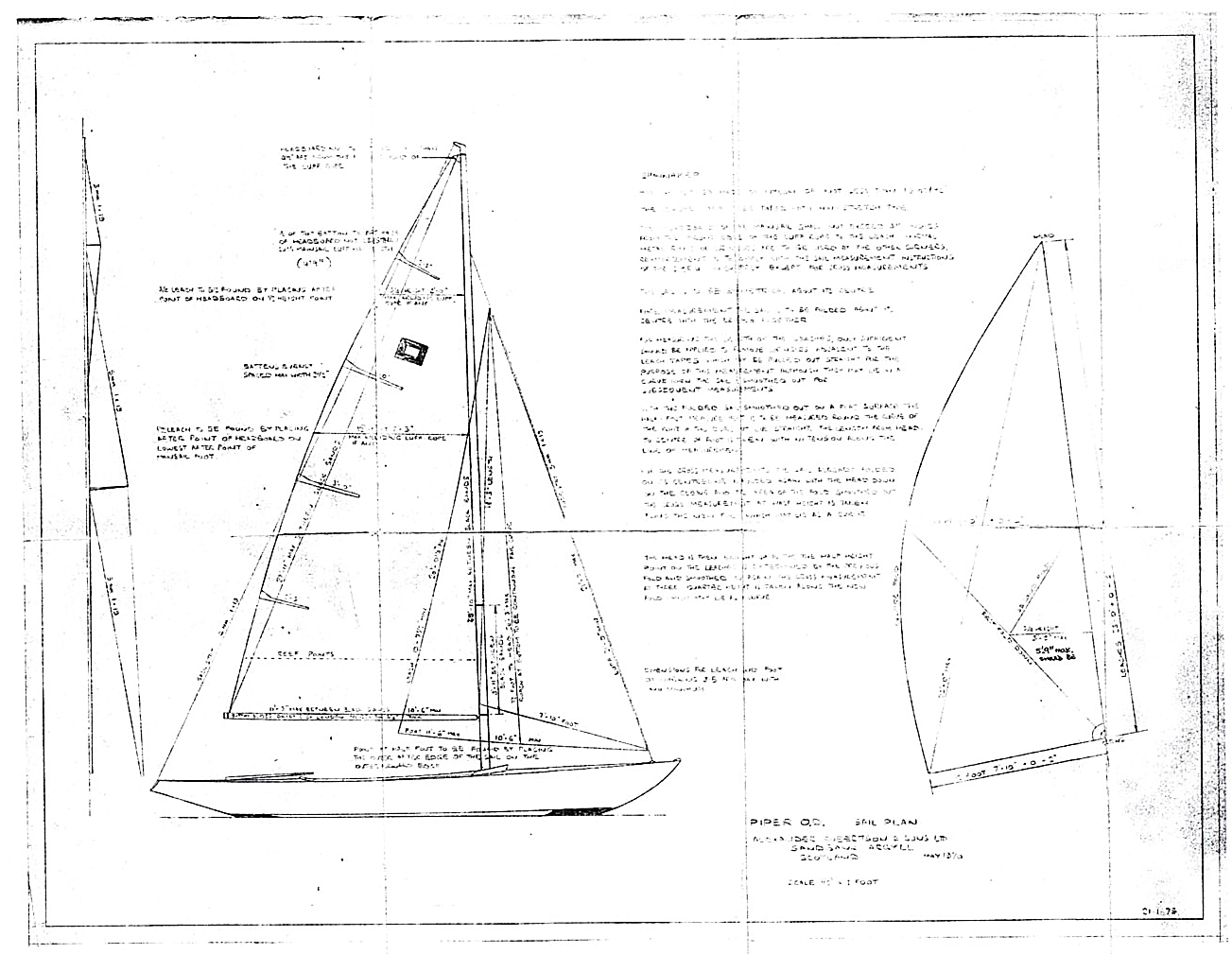

Blueprints
Sails
Piper 24 (Rustler 24) - MAINSAIL
| Luff | 25.83 ft - (7873 mm) |
|---|---|
| Foot | 11.58 ft - (3530 mm) |
| Leech | * 27.73 ft - (8452 mm) |
| Tack Angle | * 87.92 ° |
| Diagonal | 27.92 ft - (8510 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 153.27 ft² |
| Edit in Calculator |
Piper 24 (Rustler 24) - JIBSAIL
| Luff | 21.58 ft - (6578 mm) |
|---|---|
| Foot | 7.83 ft - (2387 mm) |
| Leech | 18.25 ft - (5563 mm) |
| Area | * 69.19 ft² |
| Edit in Calculator |
Piper 24 (Rustler 24) - GENOA
| Luff | 21.58 ft - (6578 mm) |
|---|---|
| Foot | 10.5 ft - (3200 mm) |
| Leech | 19.75 ft - (6020 mm) |
| Area | * 103.33 ft² |
| Edit in Calculator |
Piper 24 (Rustler 24) - SPINNAKER
| Stays | 23 ft - (7010 mm) |
|---|---|
| MidGirth | 15.67 ft - (4776 mm) |
| Foot | 16 ft - (4877 mm) |
| Area | * 313 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
