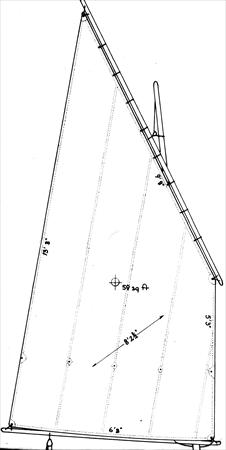

Penobscot 17 Schooner Foresail (Lug)
Description
800 lbs, balance lug, one row of reef points, laced on head, loose footed, vertical cut.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | LUGSAIL |
|---|---|
| Luff | 5.25 ft - (1600 mm) |
| Foot | 6.67 ft - (2033 mm) |
| Leech | 13.67 ft - (4167 mm) |
| Tack Angle | * 86.2 ° |
| Diag (clew/throat) | 8.21 ft - (2502 mm) |
| Head | 9.67 ft - (2947 mm) |
| Area | * 56.63 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
