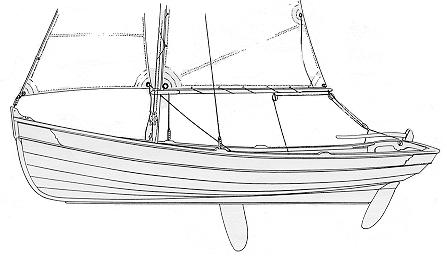

PENOBSCOT 14 Gunter
Description
Length: 14' 0" Beam: 4' 6-1/2" Weight: 155 - 175 lb.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Blueprints
+
Images
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
PENOBSCOT 14 Gunter - JIBSAIL
| Luff | 10.33 ft - (3149 mm) |
|---|---|
| Foot | 5.375 ft - (1638 mm) |
| Leech | 9.083 ft - (2768 mm) |
| Area | * 24.38 ft² |
| Edit in Calculator | |
PENOBSCOT 14 Gunter - GUNTER
| Luff | 5.292 ft - (1613 mm) |
|---|---|
| Foot | 8.42 ft - (2566 mm) |
| Leech | 15.75 ft - (4801 mm) |
| Tack Angle | * 86.53 ° |
| Diag (clew/throat) | 9.67 ft - (2947 mm) |
| Head | 9.292 ft - (2832 mm) |
| Area | * 60.75 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
