Penguin Yawl
Description

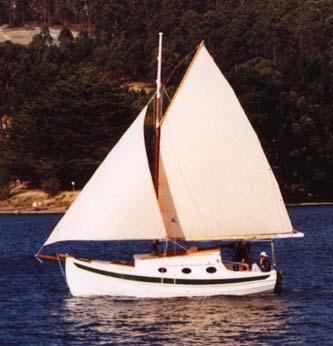

The Penguin Yawl is a sailboat designed by Welsford.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Blueprints
+
Images
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
Penguin Yawl - JIBSAIL
| Luff | 15.09 ft - (4599 mm) |
|---|---|
| Foot | 7.87 ft - (2399 mm) |
| Leech | 10.83 ft - (3301 mm) |
| Area | * 40.86 ft² |
| Edit in Calculator | |
Penguin Yawl - GENOA
| Luff | 16.73 ft - (5099 mm) |
|---|---|
| Foot | 10.5 ft - (3200 mm) |
| Leech | 13.78 ft - (4200 mm) |
| Area | * 72.17 ft² |
| Edit in Calculator | |
Penguin Yawl - GAFF MAIN
| Luff | 10.83 ft - (3301 mm) |
|---|---|
| Foot | 11.28 ft - (3438 mm) |
| Leech | 18.7 ft - (5700 mm) |
| Tack Angle | * 86.98 ° |
| Diag (clew/throat) | 15.22 ft - (4639 mm) |
| Head | 8.53 ft - (2600 mm) |
| Area | * 124.92 ft² |
| Edit in Calculator | |
Penguin Yawl - STANDING LUGSAIL
| Luff | 6.56 ft - (1999 mm) |
|---|---|
| Foot | 6.23 ft - (1899 mm) |
| Leech | 11.81 ft - (3600 mm) |
| Tack Angle | * 72.31 ° |
| Diag (clew/throat) | 7.55 ft - (2301 mm) |
| Head | 7.55 ft - (2301 mm) |
| Area | * 47.25 ft² |
| Edit in Calculator | |
