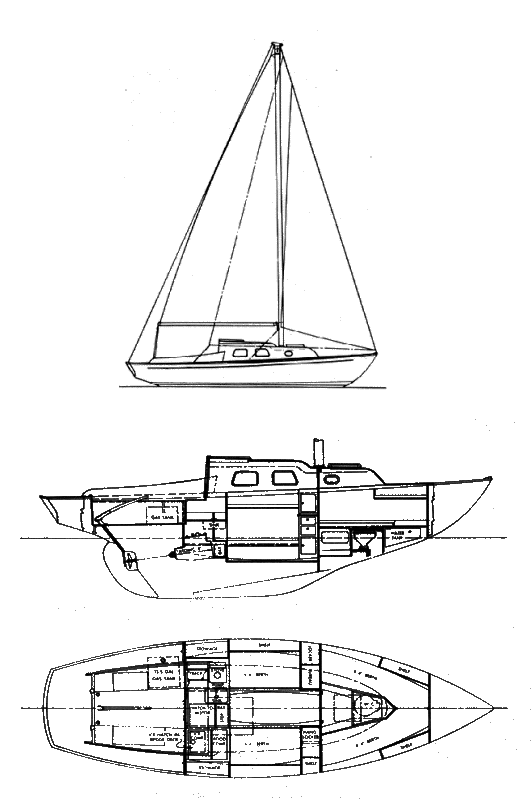

Pearson Triton (Masthead Rig MK IV)
Description
The Pearson Triton (Masthead Rig Mk IV) refers to a masthead sloop variant of the classic Carl Alberg-designed Triton, primarily built by Aeromarine Plastics in Sausalito, California, starting in 1960. Unlike the original Pearson Yachts production (fractional sloop or yawl rigs), this version features a taller masthead rig optimized for larger headsails and easier heavy-weather handling with inner forestay options, though it trades some light-air performance for stability. Approximately 150 units were produced under license (owned by Grumman, as was Pearson), with solid fiberglass construction throughout—no wood trim or coamings—making them more robust against rot but slightly heavier. The hull retains the iconic long-keel design inspired by Scandinavian Folkboats, emphasizing seaworthiness for coastal and offshore cruising, and it shares the same affordable, family-oriented appeal that made the Triton a fiberglass pioneer.
Construction Details
| Designer | Aeromarine Plastics, Sausalito, California |
|---|---|
| Builder | Aeromarine Plastics, Sausalito, California |
| Length | 28.330 ft |
| LOA | 28.330 ft |
| LWL | 21.580 ft |
| Beam | 8.500 ft |
| Displacement | 7100 lb |
| Ballast | 3019 lb |
| Max Draft | 3.920 ft |
| Year Built | 1960 |
The standard boat dimensions
| i | 36 ft |
|---|---|
| j | 9.90 ft |
| p | 31.50 ft |
| e | 13.50 ft |
| p2 | 15.50 ft |
| e2 | 6.38 ft |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 36 ft | 9.90 ft | 31.50 ft | 13.50 ft | 15.50 ft | 6.38 ft | - | - |
Sails
Pearson Triton (Masthead Rig MK IV) - MAINSAIL
| Luff | * 31 ft - (9449 mm) |
|---|---|
| Foot | * 14 ft - (4267 mm) |
| Leech | * 33.28 ft - (10144 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 33.57 ft - (10232 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 223.68 ft² |
| Edit in Calculator | |
Pearson Triton (Masthead Rig MK IV) - JIBSAIL
| Luff | * 29.07 ft - (8861 mm) |
|---|---|
| Foot | * 12.71 ft - (3874 mm) |
| Leech | * 25.77 ft - (7855 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 11.26 ft - (3432 mm) |
| Deck Angle | * 11.99 ° |
| Area | * 163.7 ft² |
| Edit in Calculator | |
Pearson Triton (Masthead Rig MK IV) - GENOA
| Luff | * 34.53 ft - (10525 mm) |
|---|---|
| Foot | * 15.58 ft - (4749 mm) |
| Leech | * 32.78 ft - (9991 mm) |
| Percentage LP | * 149.95 % |
| Length Perpendicular | * 14.68 ft - (4474 mm) |
| Deck Angle | * 3.95 ° |
| Area | * 253.44 ft² |
| Edit in Calculator | |
Pearson Triton (Masthead Rig MK IV) - GENOA
| Luff | 33 ft - (10058 mm) |
|---|---|
| Foot | 14.5 ft - (4420 mm) |
| Leech | 31.5 ft - (9601 mm) |
| Percentage LP | * 140.25 % |
| Length Perpendicular | * 13.73 ft - (4185 mm) |
| Deck Angle | * 3.08 ° |
| Area | * 226.61 ft² |
| Edit in Calculator | |
Pearson Triton (Masthead Rig MK IV) - GENOA
| Luff | * 34.53 ft - (10525 mm) |
|---|---|
| Foot | * 13.98 ft - (4261 mm) |
| Leech | * 32.74 ft - (9979 mm) |
| Percentage LP | 135 % |
| Length Perpendicular | * 13.21 ft - (4026 mm) |
| Deck Angle | * 3.47 ° |
| Area | * 228.08 ft² |
| Edit in Calculator | |
Pearson Triton (Masthead Rig MK IV) - ASYMMETRICAL
| Luff | * 34.53 ft - (10525 mm) |
|---|---|
| Foot | * 16.15 ft - (4923 mm) |
| Leech | * 31.77 ft - (9683 mm) |
| Perc LP | * 165 % |
| Area | * 418 ft² |
| Edit in Calculator | |
Pearson Triton (Masthead Rig MK IV) - STORMJIB
| Luff | * 19.99 ft - (6093 mm) |
|---|---|
| Foot | * 7.13 ft - (2173 mm) |
| Leech | * 16.99 ft - (5179 mm) |
| Perc LP | * 59.96 % |
| Length Perp | * 5.87 ft - (1789 mm) |
| Deck Angle | * 18.95 ° |
| Area | * 58.68 ft² |
| Edit in Calculator | |
