Paper Jet 14
Description
The Paper Jet (commonly known as the Paper Jet 14) is a versatile, high-performance plywood sailing skiff/dinghy designed by Dudley Dix (Dudley Dix Yacht Design) and introduced in 2006. It is built primarily via stitch-and-glue plywood construction (using 4mm plywood sheets for a lightweight hull, often from kits supplied by companies like Nautikit, Duckworks, or Third Coast Composites), featuring a modern performance skiff concept with traditional rigging touches, an open wet deck with open transom for self-draining, a lightweight interlocking ladder-frame structure, and notably three interchangeable rig options to grow with the sailor: Lite (free-standing una rig for beginners), Standard (sloop with jib, standing rigging, and trapeze), and Turbo (extended mast, larger mainsail, bowsprit, and asymmetrical spinnaker for advanced skiff-style performance). Intended mainly as a progressive training boat for teenagers or skilled amateurs (solo or two-up), it excels in speed, handling, and fun while remaining buildable by reasonably skilled home builders; production is plans- or kit-based with no mass-factory run (hundreds of sets sold, but actual hulls in the dozens to low hundreds based on builder reports and launches documented on the designer's site), and it remains available today through plans and kits.
Construction Details
| Designer | Dudley Dix |
|---|---|
| Builder | Home Built |
| Length | 13.420 ft |
| LOA | 13.420 ft |
| Beam | 5.350 ft |
| Displacement | 100 lb |
| Max Draft | 2.620 ft |
| Min Draft | 33.000 ft |
| Year Built | 2006 |
The standard boat dimensions
| i | 16.73 ft |
|---|---|
| j | 8.12 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 16.73 ft | 8.12 ft | - | - | - | - | - | - |
Documents

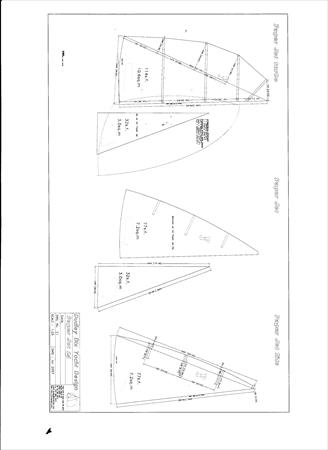

Sails
Paper Jet 14 - MAINSAIL
| Luff | 16.24 ft - (4950 mm) |
|---|---|
| Foot | 8.071 ft - (2460 mm) |
| Leech | * 17.09 ft - (5209 mm) |
| Tack Angle | * 83.37 ° |
| Diagonal | 17.28 ft - (5267 mm) |
| Head (inches) | 3.94 in - (100 mm) |
| Area | * 67.4 ft² |
| Edit in Calculator |
Paper Jet 14 - MAINSAIL
| Luff | 17.388 ft - (5300 mm) |
|---|---|
| Foot | 8.071 ft - (2460 mm) |
| Leech | * 17.14 ft - (5224 mm) |
| Tack Angle | * 84.5 ° |
| Diagonal | 18.455 ft - (5625 mm) |
| Head (inches) | 29.53 in - (750 mm) |
| Area | * 88.32 ft² |
| Edit in Calculator |
Paper Jet 14 - JIBSAIL
| Luff | 14.091 ft - (4295 mm) |
|---|---|
| Foot | 4.872 ft - (1485 mm) |
| Leech | 13.123 ft - (4000 mm) |
| Percentage LP | * 55.91 % |
| Length Perpendicular | * 4.54 ft - (1384 mm) |
| Deck Angle | * -4.5 ° |
| Area | * 31.96 ft² |
| Edit in Calculator |
Paper Jet 14 - ASYMMETRICAL
| Luff | 19 ft - (5791 mm) |
|---|---|
| Foot | 8.7 ft - (2652 mm) |
| Leech | 15 ft - (4572 mm) |
| Perc LP | * 165 % |
| Area | * 124 ft² |
| Edit in Calculator |
