Pacific Dolphin 24
Description
The Pacific Dolphin 24 is a trailerable, monohull sailboat designed by Sparkman & Stephens (S&S design #1497) and built by Pacific Dolphin Inc. in Anaheim, CA, from 1974 to 1978. It is a variant of the Dolphin 24, originally designed by William Shaw in 1959 as a Midget Ocean Racing Club (MORC) racer-cruiser.
Construction Details
| Designer | Sparkman & Stephens |
|---|---|
| Builder | Pacific Dolphin Inc. |
| Length | 24.000 ft |
| LOA | 24.170 ft |
| LWL | 19.000 ft |
| Beam | 7.670 ft |
| Displacement | 4250 lb |
| Max Draft | 5.800 ft |
| Min Draft | 2.800 ft |
The standard boat dimensions
| i | 30.75 ft |
|---|---|
| j | 9 ft |
| p | 26.75 ft |
| e | 11.83 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 30.75 ft | 9 ft | 26.75 ft | 11.83 ft | - | - | - | - |

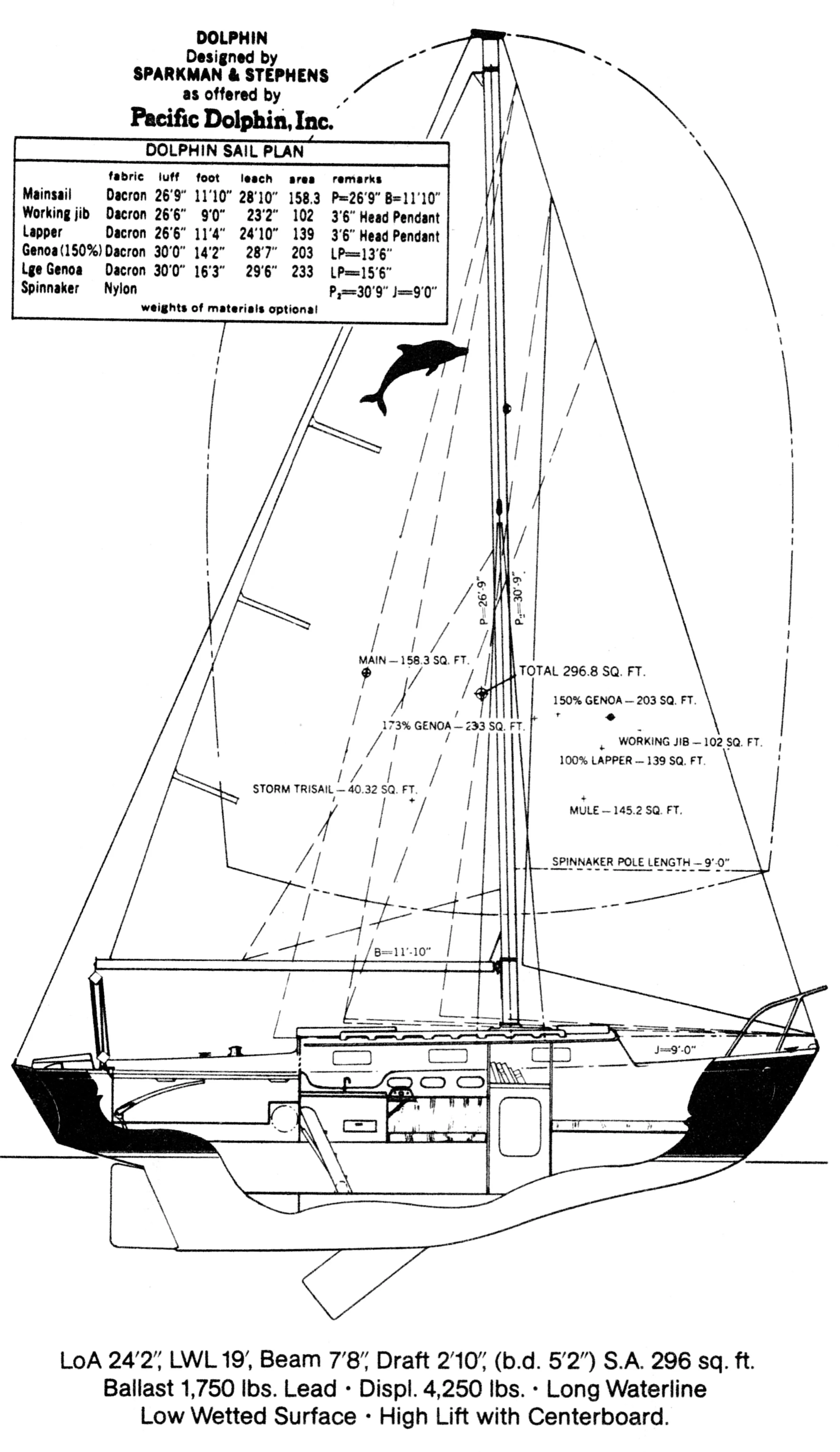

Blueprints
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 26.75 ft - (8153 mm) |
| Foot | 11.83 ft - (3606 mm) |
| Leech | * 28.64 ft - (8729 mm) |
| Tack Angle | * 87.8 ° |
| Diagonal | 28.83 ft - (8787 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 162.04 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 23.167 ft - (7061 mm) |
| Percentage LP | * 85.56 % |
| Length Perpendicular | * 7.7 ft - (2347 mm) |
| Deck Angle | * 14.81 ° |
| Area | * 102.09 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.63 ft - (7812 mm) |
| Foot | * 11.76 ft - (3584 mm) |
| Leech | * 22.57 ft - (6879 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.35 ft - (3155 mm) |
| Deck Angle | * 12 ° |
| Area | 132.69 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 26.5 ft - (8077 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | 24.83 ft - (7568 mm) |
| Percentage LP | * 117.67 % |
| Length Perpendicular | * 10.59 ft - (3228 mm) |
| Deck Angle | * 4.57 ° |
| Area | * 140.26 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 30.44 ft - (9278 mm) |
| Foot | * 14.4 ft - (4389 mm) |
| Leech | * 28.8 ft - (8778 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.5 ft - (4115 mm) |
| Deck Angle | * 4 ° |
| Area | 205.52 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 14.167 ft - (4318 mm) |
| Leech | 28.58 ft - (8711 mm) |
| Percentage LP | * 148.33 % |
| Length Perpendicular | * 13.35 ft - (4069 mm) |
| Deck Angle | * 3.2 ° |
| Area | * 200.3 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 30.44 ft - (9278 mm) |
| Foot | * 14.85 ft - (4526 mm) |
| Leech | * 28 ft - (8534 mm) |
| Perc LP | * 165 % |
| Area | * 339 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 30.44 ft - (9278 mm) |
| MidGirth | * 16.2 ft - (4938 mm) |
| Foot | * 16.2 ft - (4938 mm) |
| Perc LP | * 180 % |
| Area | 419.16 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 30.44 ft - (9278 mm) |
| MidGirth | * 16.2 ft - (4938 mm) |
| Foot | * 16.2 ft - (4938 mm) |
| Perc LP | * 180 % |
| Area | * 419 ft² |
