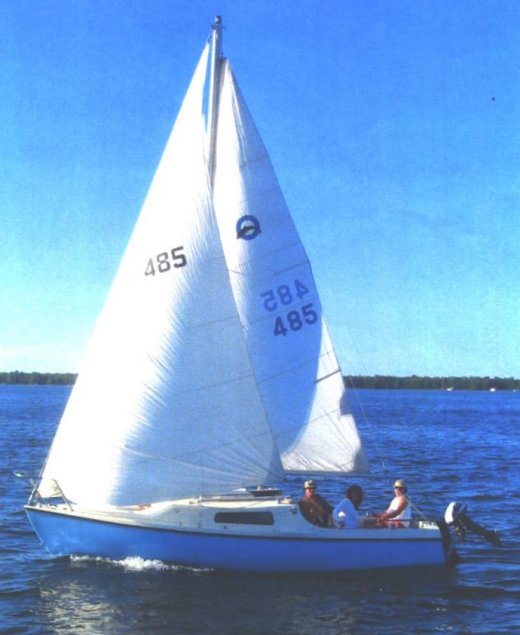

Olympic Dolphin 23
Description
2200 lbs. Disp 1000 lbs. Ballast 20'6" LWL 7'3" Beam 2' Draft cb up 3'9" Draft cb down
Construction Details
| Designer | Olympic Yachts |
|---|---|
| Length | 22.750 ft |
| LOA | 22.750 ft |
| LWL | 20.500 ft |
| Beam | 7.250 ft |
| Displacement | 2200 lb |
| Max Draft | 3.750 ft |
| Min Draft | 1.670 ft |
The standard boat dimensions
| i | 25 ft |
|---|---|
| j | 8.58 ft |
| p | 21.42 ft |
| e | 9.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25 ft | 8.58 ft | 21.42 ft | 9.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 21.42 ft - (6529 mm) |
| Foot | * 9.75 ft - (2972 mm) |
| Leech-AftHdBd | * 23.01 ft - (7013 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 23.22 ft - (7077 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 107.95 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.25 ft - (7391 mm) |
| Foot | 10.42 ft - (3176 mm) |
| Leech | 22 ft - (6706 mm) |
| Percentage LP | * 110.14 % |
| Length Perpendicular | * 9.45 ft - (2880 mm) |
| Deck Angle | * 5.94 ° |
| Area | * 114.61 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.15 ft - (6447 mm) |
| Foot | * 11.51 ft - (3508 mm) |
| Leech | * 18.15 ft - (5532 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 9.87 ft - (3008 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 104.39 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 19 ft - (5791 mm) |
| Percentage LP | * 100.47 % |
| Length Perpendicular | * 8.62 ft - (2627 mm) |
| Deck Angle | * 11.51 ° |
| Area | * 94.83 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.25 ft - (7696 mm) |
| Foot | 14 ft - (4267 mm) |
| Leech | 23.75 ft - (7239 mm) |
| Percentage LP | * 150.82 % |
| Length Perpendicular | * 12.94 ft - (3944 mm) |
| Deck Angle | * 3.47 ° |
| Area | * 163.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.11 ft - (7654 mm) |
| Foot | * 13.98 ft - (4261 mm) |
| Leech | * 23.49 ft - (7160 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.87 ft - (3923 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 161.58 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 25.25 ft - (7696 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 23 ft - (7010 mm) |
| Perc LP | * 164.1 % |
| Length Perp | * 14.08 ft - (4292 mm) |
| Deck Angle | * 7.7 ° |
| Area | * 177.74 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 15.75 ft - (4801 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 % |
| Area | * 307 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 6.25 ft - (1905 mm) |
| Leech | 12 ft - (3658 mm) |
| Perc LP | * 59.32 % |
| Length Perp | * 5.09 ft - (1551 mm) |
| Deck Angle | * 16.58 ° |
| Area | * 36.88 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
