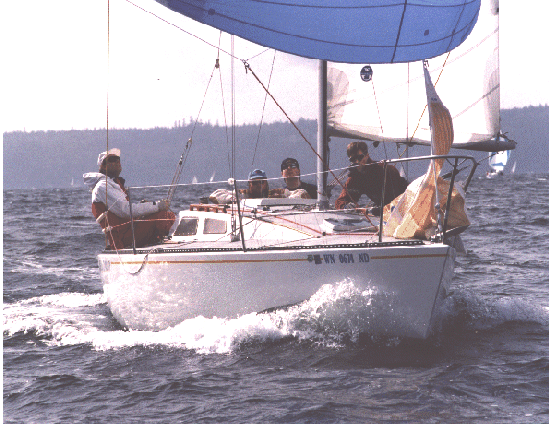

OLSON 25
Description
LOA 25' LWL 21'3" Beam 9' Draft 4'6" Disp. 2900 lbs Ballast 1300 lbs
Construction Details
| Designer | George Olson |
|---|---|
| Length | 25.000 ft |
| LOA | 25.000 ft |
| LWL | 21.200 ft |
| Beam | 9.000 ft |
| Displacement | 2900 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 32 ft |
|---|---|
| j | 9.58 ft |
| p | 28 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 32 ft | 9.58 ft | 28 ft | 10 ft | - | - | - | - |
Documents
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
OLSON 25 - MAINSAIL
| Luff | * 28 ft - (8534 mm) |
|---|---|
| Foot | * 10 ft - (3048 mm) |
| Leech | * 29.19 ft - (8897 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 29.4 ft - (8961 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 144.46 ft² |
| Edit in Calculator | |
OLSON 25 - JIBSAIL
| Luff | * 26.72 ft - (8144 mm) |
|---|---|
| Foot | * 12.56 ft - (3828 mm) |
| Leech | * 23.45 ft - (7148 mm) |
| Percentage LP | * 115.03 % |
| Length Perpendicular | * 11.02 ft - (3359 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 147.26 ft² |
| Edit in Calculator | |
OLSON 25 - JIBSAIL
| Luff | 31.5 ft - (9601 mm) |
|---|---|
| Foot | 12.75 ft - (3886 mm) |
| Leech | 29.67 ft - (9043 mm) |
| Percentage LP | * 125.05 % |
| Length Perpendicular | * 11.98 ft - (3652 mm) |
| Deck Angle | * 3.32 ° |
| Area | * 188.72 ft² |
| Edit in Calculator | |
OLSON 25 - JIBSAIL
| Luff | 28 ft - (8534 mm) |
|---|---|
| Foot | 8.83 ft - (2691 mm) |
| Leech | 26 ft - (7925 mm) |
| Percentage LP | * 85.39 % |
| Length Perpendicular | * 8.18 ft - (2493 mm) |
| Deck Angle | * 5.43 ° |
| Area | * 114.54 ft² |
| Edit in Calculator | |
OLSON 25 - GENOA
| Luff | * 31.73 ft - (9671 mm) |
|---|---|
| Foot | * 15.36 ft - (4682 mm) |
| Leech | * 29.97 ft - (9135 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 14.37 ft - (4380 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 227.96 ft² |
| Edit in Calculator | |
OLSON 25 - DRIFTER
| Luff | 32 ft - (9754 mm) |
|---|---|
| Foot | 16 ft - (4877 mm) |
| Leech | 29.5 ft - (8992 mm) |
| Perc LP | * 153.03 % |
| Length Perp | * 14.66 ft - (4468 mm) |
| Deck Angle | * 6.92 ° |
| Area | * 234.61 ft² |
| Edit in Calculator | |
OLSON 25 - ASYMMETRICAL
| Luff | * 31.73 ft - (9671 mm) |
|---|---|
| Foot | * 15.81 ft - (4819 mm) |
| Leech | * 29.19 ft - (8897 mm) |
| Perc LP | * 165 % |
| Area | * 376 ft² |
| Edit in Calculator | |
OLSON 25 - SPINNAKER
| Stays | * 31.73 ft - (9671 mm) |
|---|---|
| MidGirth | * 17.24 ft - (5255 mm) |
| Foot | * 17.24 ft - (5255 mm) |
| Perc LP | * 180 % |
| Area | * 465 ft² |
| Edit in Calculator | |
OLSON 25 - STORMJIB
| Luff | * 18.37 ft - (5599 mm) |
|---|---|
| Foot | * 7.08 ft - (2158 mm) |
| Leech | * 15.36 ft - (4682 mm) |
| Perc LP | * 60.02 % |
| Length Perp | * 5.75 ft - (1753 mm) |
| Deck Angle | * 19 ° |
| Area | * 52.83 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
