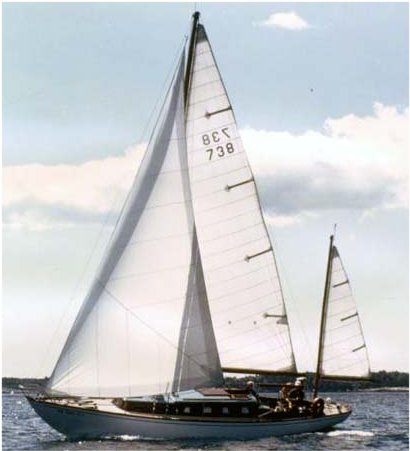

Ohlson 36
Description
The OHLSON 36 is a cruising yacht designed by Einar Ohlson. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Einar Ohlson |
|---|---|
| Length | 36.000 ft |
| LOA | 36.000 ft |
| LWL | 25.000 ft |
| Beam | 9.330 ft |
| Displacement | 13800 lb |
| Max Draft | 6.080 ft |
The standard boat dimensions
| i | 40 ft |
|---|---|
| j | 13 ft |
| p | 35 ft |
| e | 15.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 40 ft | 13 ft | 35 ft | 15.75 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 35 ft - (10668 mm) |
| Foot | * 15.75 ft - (4801 mm) |
| Leech | * 37.67 ft - (11482 mm) |
| Tack Angle | * 88.02 ° |
| Diagonal | * 37.88 ft - (11546 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 275.29 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33.65 ft - (10257 mm) |
| Foot | * 17.26 ft - (5261 mm) |
| Leech | * 29.14 ft - (8882 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.95 ft - (4557 mm) |
| Deck Angle | * 12 ° |
| Area | 251.45 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.96 ft - (12180 mm) |
| Foot | * 21.03 ft - (6410 mm) |
| Leech | * 37.54 ft - (11442 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.5 ft - (5944 mm) |
| Deck Angle | * 4 ° |
| Area | 389.56 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.96 ft - (12180 mm) |
| MidGirth | * 23.4 ft - (7132 mm) |
| Foot | * 23.4 ft - (7132 mm) |
| Perc LP | * 180 % |
| Area | 794.8 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
