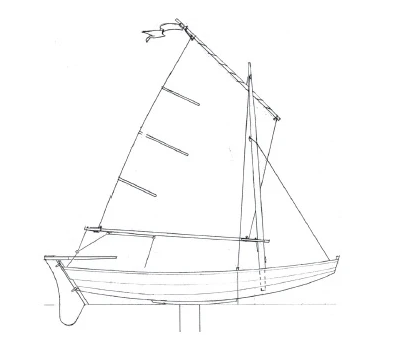

Norwegian Pram 11' 9"
Description
The Norwegian Pram with an LOA of 11 ft 9" in refers to a specific modern adaptation of the traditional Norwegian sailing/rowing pram, likely the design by Simon Watts, whose plans (drawn by Bill Nielsen in 1991) are widely available through the WoodenBoat Store. This compact, flat-bottomed, lapstrake wooden dinghy, rooted in Viking-era Scandinavian designs, is optimized for ease of construction, rowing, sailing, and trailering. It’s a popular choice for home builders, sailing schools, and family projects due to its simplicity, stability, and seaworthiness for its size. The 11 ft 6 in length aligns closely with Watts’ standard Norwegian Pram design, sometimes listed as 11 ft 9 in but varying slightly due to builder modifications or measurement conventions.
Construction Details
| Designer | Simon Watts |
|---|---|
| Length | 11.750 ft |
| LOA | 11.750 ft |
| Beam | 3.500 ft |
| Displacement | 130 lb |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Norwegian Pram 11' 9" - STANDING LUGSAIL
| Luff | 5.083 ft - (1549 mm) |
|---|---|
| Foot | 6.25 ft - (1905 mm) |
| Leech | 9 ft - (2743 mm) |
| Tack Angle | * 100.58 ° |
| Diag (clew/throat) | 8.75 ft - (2667 mm) |
| Head | 5 ft - (1524 mm) |
| Area | * 36.87 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
