Nordica 30
Description

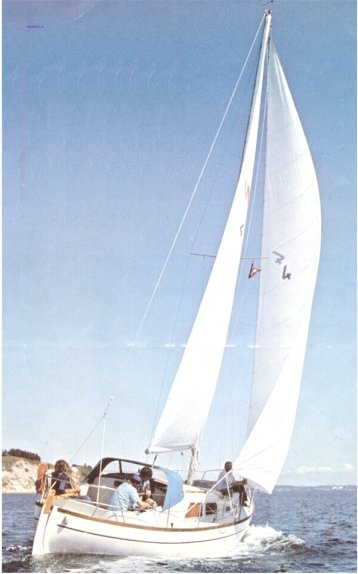

The NORDICA 30 is a compact cruiser designed by Exe Fibercraft. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Exe Fibercraft |
|---|---|
| Length | 29.830 ft |
| LOA | 29.860 ft |
| LWL | 25.100 ft |
| Beam | 9.500 ft |
| Displacement | 10362 lb |
| Max Draft | 5.120 ft |
The standard boat dimensions
| i | 39.86 ft |
|---|---|
| j | 10.63 ft |
| p | 37.43 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.86 ft | 10.63 ft | 37.43 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.43 ft - (11409 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 39.03 ft - (11896 mm) |
| Tack Ang | * 87.99 ° |
| Diag (clew/head) | * 39.19 ft - (11945 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 243.02 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 33 ft - (10058 mm) |
| Foot | * 13.71 ft - (4179 mm) |
| Leech | * 29.45 ft - (8976 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.22 ft - (3725 mm) |
| Deck Angle | * 12 ° |
| Area | 201.7 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.19 ft - (11945 mm) |
| Foot | * 16.86 ft - (5139 mm) |
| Leech | * 37.3 ft - (11369 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 15.95 ft - (4862 mm) |
| Deck Angle | * 4 ° |
| Area | 312.49 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 39.19 ft - (11945 mm) |
| MidGirth | * 19.13 ft - (5831 mm) |
| Foot | * 19.13 ft - (5831 mm) |
| Perc LP | * 180 % |
| Area | 637.25 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
