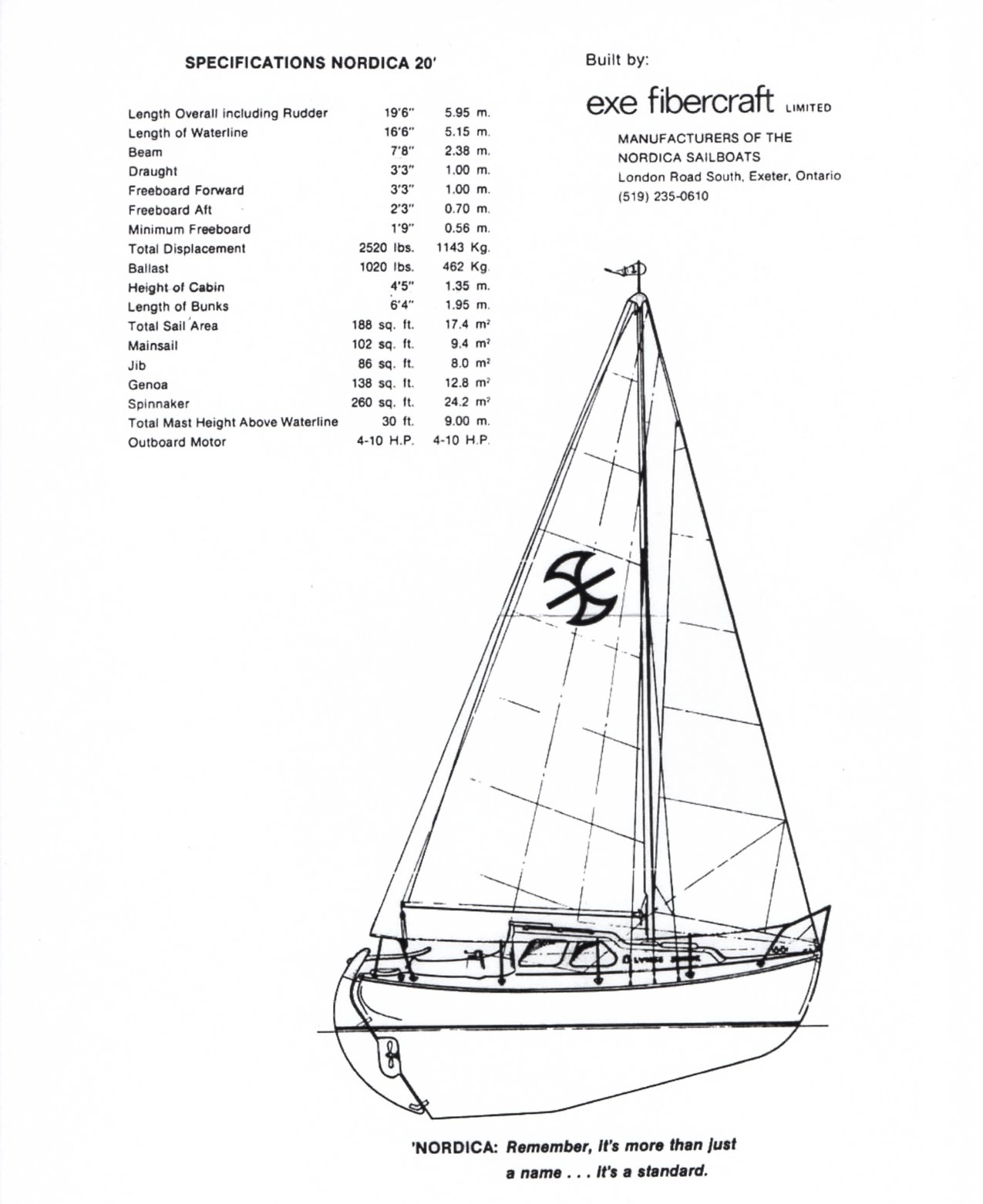

Nordica 20
Description
L.O.A. is 19’ 6” - LWL is 16’ 6” - Beam is 7’ 8” - Draft (full keel) is 3’ 3” - Displacement is 2520 lbs. - Ballast is 1026 lbs.
Construction Details
| Designer | Exe Fibercraft |
|---|---|
| Length | 20.000 ft |
| LOA | 19.500 ft |
| LWL | 16.500 ft |
| Beam | 7.670 ft |
| Displacement | 2520 lb |
| Max Draft | 3.250 ft |
The standard boat dimensions
| i | 25.17 ft |
|---|---|
| j | 6.33 ft |
| p | 23.33 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.17 ft | 6.33 ft | 23.33 ft | 9 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.33 ft - (7111 mm) |
| Foot | * 9 ft - (2743 mm) |
| Leech-AftHdBd | * 24.48 ft - (7462 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 24.71 ft - (7532 mm) |
| Head (inches) | * 4 in |
| Area (no Roach) | * 107.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 20.76 ft - (6328 mm) |
| Foot | * 8.11 ft - (2472 mm) |
| Leech | * 18.66 ft - (5688 mm) |
| Percentage LP | * 115.01 % |
| Length Perpendicular | * 7.28 ft - (2219 mm) |
| Deck Angle | * 12.06 ° |
| Area | * 75.55 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 23.5 ft - (7163 mm) |
| Foot | 9 ft - (2743 mm) |
| Leech | 22.5 ft - (6858 mm) |
| Percentage LP | * 135.55 % |
| Length Perpendicular | * 8.58 ft - (2615 mm) |
| Deck Angle | * 3.36 ° |
| Area | * 100.87 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 24.66 ft - (7516 mm) |
| Foot | * 10 ft - (3048 mm) |
| Leech | * 23.54 ft - (7175 mm) |
| Percentage LP | * 150.08 % |
| Length Perpendicular | * 9.5 ft - (2896 mm) |
| Deck Angle | * 4.08 ° |
| Area | * 117.14 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 12.25 ft - (3734 mm) |
| Leech | 22.75 ft - (6934 mm) |
| Perc LP | * 175.51 % |
| Length Perp | * 11.11 ft - (3386 mm) |
| Deck Angle | * 10.74 ° |
| Area | * 138.94 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 11 ft - (3353 mm) |
| Leech | 23 ft - (7010 mm) |
| Perc LP | * 165 % |
| Area | * 206 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
