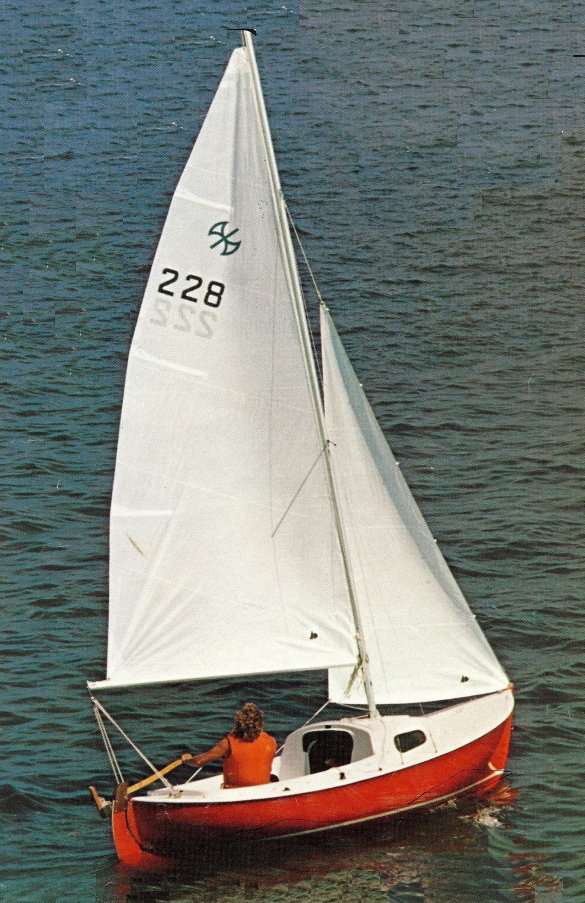

Nordica 16
Description
980 lbs.
Construction Details
| Designer | Exe Fibercraft |
|---|---|
| Length | 15.000 ft |
| LOA | 15.500 ft |
| LWL | 13.080 ft |
| Beam | 6.170 ft |
| Displacement | 925 lb |
| Max Draft | 1.670 ft |
The standard boat dimensions
| i | 15.50 ft |
|---|---|
| j | 5.50 ft |
| p | 18 ft |
| e | 8.30 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 15.50 ft | 5.50 ft | 18 ft | 8.30 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 18 ft - (5486 mm) |
| Foot | * 8.3 ft - (2530 mm) |
| Leech-AftHdBd | * 19.39 ft - (5910 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 19.56 ft - (5962 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 76.97 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 6.75 ft - (2057 mm) |
| Leech | 12.42 ft - (3786 mm) |
| Percentage LP | * 104.91 % |
| Length Perpendicular | * 5.77 ft - (1759 mm) |
| Deck Angle | * 11.72 ° |
| Area | * 41.84 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12.67 ft - (3862 mm) |
| Foot | 6.25 ft - (1905 mm) |
| Leech | 11 ft - (3353 mm) |
| Percentage LP | * 98.73 % |
| Length Perpendicular | * 5.43 ft - (1655 mm) |
| Deck Angle | * 10.21 ° |
| Area | * 34.37 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 13 ft - (3962 mm) |
| Foot | 6.5 ft - (1981 mm) |
| Leech | 11.083 ft - (3378 mm) |
| Percentage LP | * 100.73 % |
| Length Perpendicular | * 5.54 ft - (1689 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 36.01 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 6.25 ft - (1905 mm) |
| Leech | 12.5 ft - (3810 mm) |
| Percentage LP | * 97.45 % |
| Length Perpendicular | * 5.36 ft - (1634 mm) |
| Deck Angle | * 11.36 ° |
| Area | * 38.88 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 8.083 ft - (2464 mm) |
| Leech | 14 ft - (4267 mm) |
| Percentage LP | * 135.45 % |
| Length Perpendicular | * 7.45 ft - (2271 mm) |
| Deck Angle | * 3.36 ° |
| Area | * 55.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 15.25 ft - (4648 mm) |
| Foot | 8.25 ft - (2515 mm) |
| Leech | 14 ft - (4267 mm) |
| Percentage LP | * 136.36 % |
| Length Perpendicular | * 7.5 ft - (2286 mm) |
| Deck Angle | * 5.03 ° |
| Area | * 57.21 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 14.79 ft - (4508 mm) |
| Foot | 7.54 ft - (2298 mm) |
| Leech | 14.625 ft - (4458 mm) |
| Percentage LP | * 131.82 % |
| Length Perpendicular | * 7.25 ft - (2210 mm) |
| Deck Angle | * -3.48 ° |
| Area | * 53.58 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 10.25 ft - (3124 mm) |
| Leech | 14.5 ft - (4420 mm) |
| Perc LP | * 171.64 % |
| Length Perp | * 9.44 ft - (2877 mm) |
| Deck Angle | * 3.4 ° |
| Area | * 70.8 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 15 ft - (4572 mm) |
| Foot | 7.42 ft - (2262 mm) |
| Leech | 13.67 ft - (4167 mm) |
| Perc LP | * 122.55 % |
| Length Perp | * 6.74 ft - (2054 mm) |
| Deck Angle | * 5.21 ° |
| Area | * 50.54 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 16 ft - (4877 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech | 14.75 ft - (4496 mm) |
| Perc LP | * 165 % |
| Area | * 114 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
