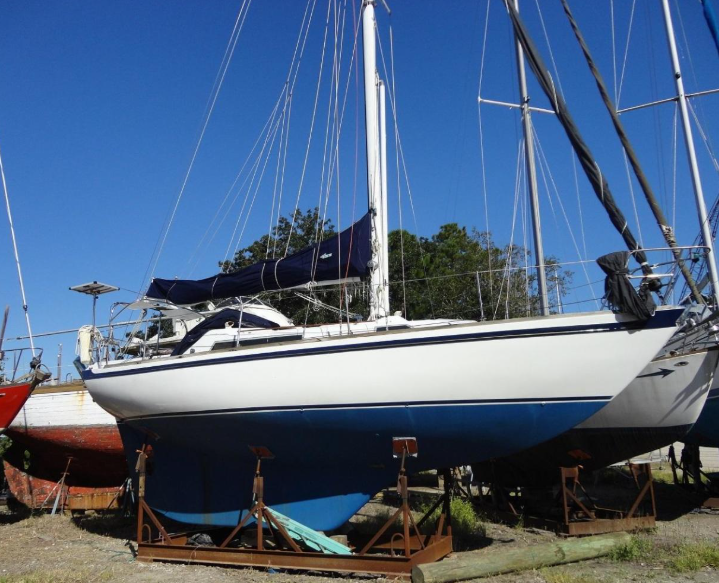

Nicholson 31
Description
The Nicholson 31 is a mid-sized cruiser designed by Raymond Wall. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Raymond Wall |
|---|---|
| Length | 30.540 ft |
| LOA | 30.540 ft |
| LWL | 24.170 ft |
| Beam | 10.200 ft |
| Displacement | 13005 lb |
| Max Draft | 5.000 ft |
The standard boat dimensions
| i | 39.20 ft |
|---|---|
| j | 12.60 ft |
| p | 34.87 ft |
| e | 13.58 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 39.20 ft | 12.60 ft | 34.87 ft | 13.58 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 34.87 ft - (10628 mm) |
| Foot | * 13.58 ft - (4139 mm) |
| Leech-AftHdBd | * 36.7 ft - (11186 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 36.98 ft - (11272 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 244.26 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 37.75 ft - (11506 mm) |
| Foot | 14.75 ft - (4496 mm) |
| Leech | 34 ft - (10363 mm) |
| Percentage LP | * 105.32 % |
| Length Perpendicular | * 13.27 ft - (4045 mm) |
| Deck Angle | * 8.09 ° |
| Area | * 250.42 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 34 ft - (10363 mm) |
| Foot | 16.25 ft - (4953 mm) |
| Leech | 30.5 ft - (9296 mm) |
| Percentage LP | * 115.63 % |
| Length Perpendicular | * 14.57 ft - (4441 mm) |
| Deck Angle | * 8.49 ° |
| Area | * 247.63 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.12 ft - (11924 mm) |
| Foot | * 20.36 ft - (6206 mm) |
| Leech | * 36.78 ft - (11211 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.9 ft - (5761 mm) |
| Deck Angle | * 4 ° |
| Area | * 369.71 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 39.12 ft - (11924 mm) |
| Foot | * 20.36 ft - (6206 mm) |
| Leech | * 36.78 ft - (11211 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18.9 ft - (5761 mm) |
| Deck Angle | * 4 ° |
| Area | * 369.71 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 22 ft - (6706 mm) |
| Leech | 37 ft - (11278 mm) |
| Perc LP | * 165 % |
| Area | * 660 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
