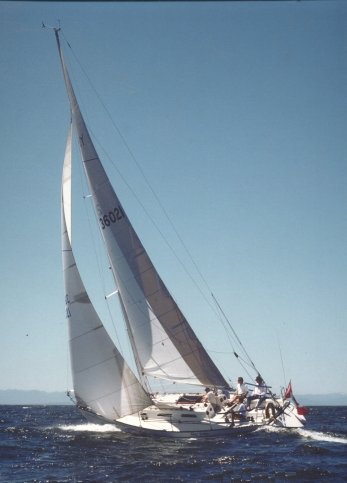

New York 36
Description
The NEW YORK 36 is a cruising yacht designed by William Cook. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | William Cook |
|---|---|
| Length | 36.000 ft |
| LOA | 35.670 ft |
| LWL | 29.000 ft |
| Beam | 11.670 ft |
| Displacement | 10000 lb |
| Max Draft | 6.330 ft |
The standard boat dimensions
| i | 42.10 ft |
|---|---|
| j | 12.80 ft |
| p | 46.50 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 42.10 ft | 12.80 ft | 46.50 ft | 16 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 46.5 ft - (14173 mm) |
| Foot | * 16 ft - (4877 mm) |
| Leech | * 48.48 ft - (14777 mm) |
| Tack Angle | * 87.98 ° |
| Diagonal | * 48.64 |
| Head (inches) | * 6 in |
| Area | 371.61 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 35.2 ft - (10729 mm) |
| Foot | * 16.82 ft - (5127 mm) |
| Leech | * 30.81 ft - (9391 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 14.72 ft - (4487 mm) |
| Deck Angle | * 12 ° |
| Area | 259.11 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 41.8 ft - (12741 mm) |
| Foot | * 20.55 ft - (6264 mm) |
| Leech | * 39.45 ft - (12024 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.2 ft - (5852 mm) |
| Deck Angle | * 4 ° |
| Area | 401.2 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 41.8 ft - (12741 mm) |
| MidGirth | * 23.04 ft - (7023 mm) |
| Foot | * 23.04 ft - (7023 mm) |
| Perc LP | * 180 % |
| Area | 818.61 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
