Ness Yawl
Description

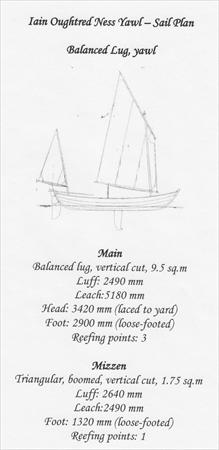

Balanced Lug rig with Bermuda mizzen
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
Ness Yawl - MIZZEN
| Luff | 8.67 ft - (2643 mm) |
|---|---|
| Foot | 4.33 ft - (1320 mm) |
| Leech-AftHdBd | 8.11 ft - (2472 mm) |
| Tack Ang | * 68.38 ° |
| Diag (clew/head) | 8.14 ft - (2481 mm) |
| Head (inches) | 2 in - (51 mm) |
| Area (no Roach) | * 18.12 ft² |
| Edit in Calculator | |
Ness Yawl - STANDING LUGSAIL
| Luff | 8.167 ft - (2489 mm) |
|---|---|
| Foot | 9.5 ft - (2896 mm) |
| Leech | 17 ft - (5182 mm) |
| Tack Angle | * 78.01 ° |
| Diag (clew/throat) | 11.167 ft - (3404 mm) |
| Head | 11.25 ft - (3429 mm) |
| Area | * 100.05 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
