Narai Mk Iv
Description

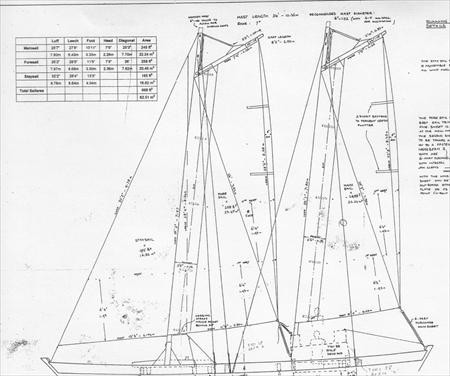

The Narai MK IV is a classic catamaran sailboat designed by James Wharram, part of his renowned Classic Designs series, known for its sturdy construction and ocean-going capability. Built primarily for amateur construction using plywood, timber, and epoxy, it’s a double-canoe design inspired by Polynesian catamarans, offering a sustainable and robust option for long-distance cruising. empty weight 3.5 tons loading capacity 3-3.5 tons plywood/epoxy catamaran LOA 40' WLL 32' Beam overall 21' soft wing sail schooner rig- sails are loose-footed and have a zippered luff pocket which wraps around the mast.
Construction Details
| Designer | James Wharram Designs |
|---|---|
| Length | 40.000 ft |
| LOA | 41.000 ft |
| LWL | 32.000 ft |
| Beam | 19.000 ft |
| Displacement | 7000 lb |
| Max Draft | 2.330 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
| Sail Type | STAYSAIL |
|---|---|
| Luff | 32.08 ft - (9778 mm) |
| Foot | 13.25 ft - (4039 mm) |
| Leech | 28.34 ft - (8638 mm) |
| Length Perpendicular | * 11.68 ft - (3560 mm) |
| Area | * 187.33 ft² |
| Sail Type | GAFF FORESAIL |
|---|---|
| Luff | 26.14 ft - (7967 mm) |
| Foot | 11.48 ft - (3499 mm) |
| Leech | 28.47 ft - (8678 mm) |
| Head | * 76.5 ft - (23317 mm) |
| Diag (clew/throat) | 25.98 ft - (7919 mm) |
| Tack Angle | 7.74 ° |
| Area | 258 ft² |
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 25.59 ft - (7800 mm) |
| Foot | 10.92 ft - (3328 mm) |
| Leech | 8.43 ft - (2569 mm) |
| Tack Angle | * 88 ° |
| Head | 7.41 ft - (2259 mm) |
| Area | 22.24 ft² |
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 25.59 ft - (7800 mm) |
| Foot | 10.92 ft - (3328 mm) |
| Leech | 27.65 ft - (8428 mm) |
| Tack Angle | * 75.91 ° |
| Diag (clew/throat) | 25.26 ft - (7699 mm) |
| Head | 7.41 ft - (2259 mm) |
| Area | 245 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
