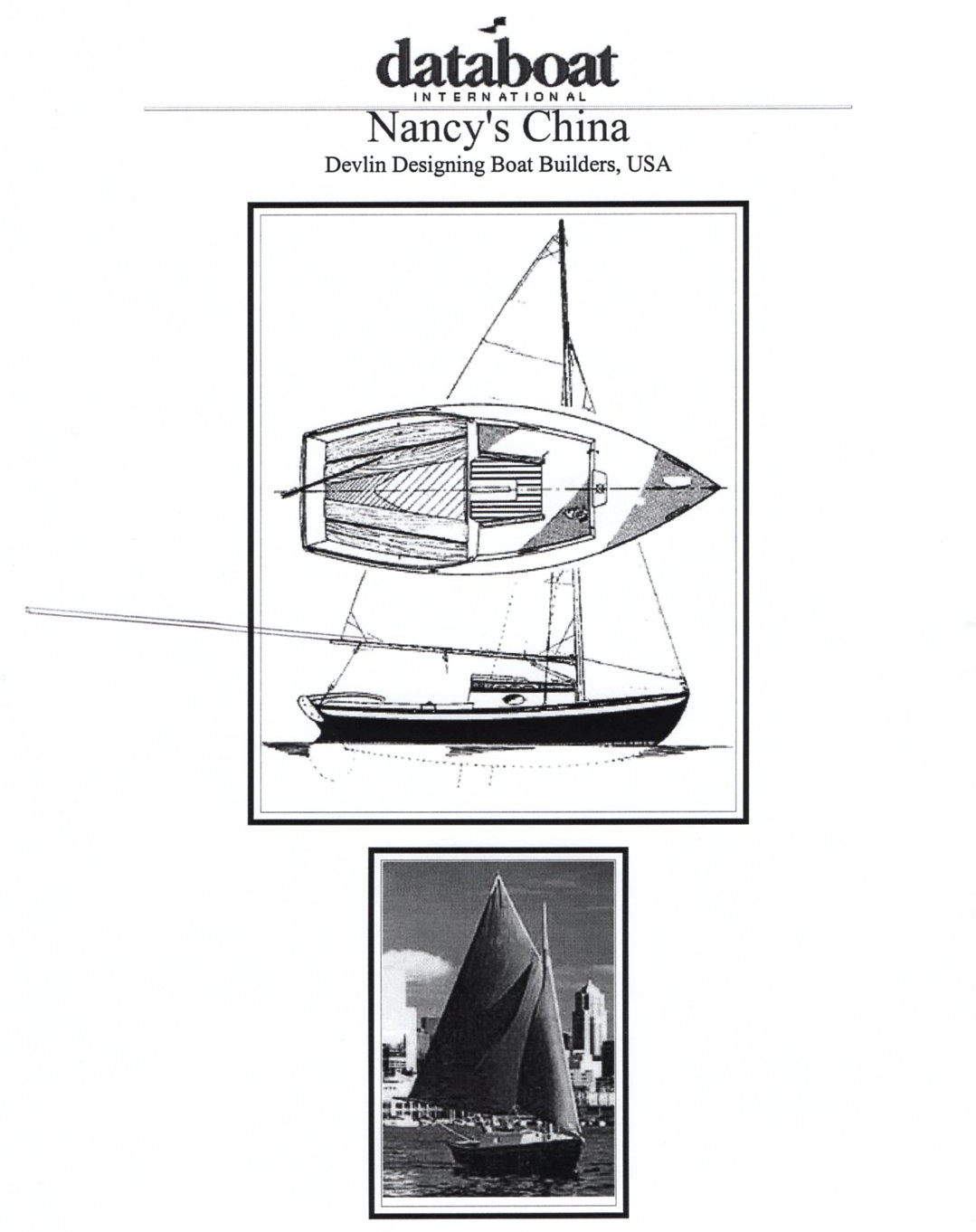

NANCY'S CHINA BERMUDA RIG
Description
The NANCY'S CHINA BERMUDA RIG is a sailboat designed by Sam Devlin.
Construction Details
| Designer | Sam Devlin |
|---|---|
| Length | 15.000 ft |
| LOA | 15.170 ft |
| LWL | 12.500 ft |
| Beam | 6.000 ft |
| Max Draft | 2.750 ft |
| Min Draft | 0.830 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
NANCY'S CHINA BERMUDA RIG - MAINSAIL
| Luff | 17 ft - (5182 mm) |
|---|---|
| Foot | 9.5 ft - (2896 mm) |
| Leech | * 18.96 ft - (5779 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 19.18 ft - (5846 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 83.6 ft² |
| Edit in Calculator | |
NANCY'S CHINA BERMUDA RIG - JIBSAIL
| Luff | 12.33 ft - (3758 mm) |
|---|---|
| Foot | 5.67 ft - (1728 mm) |
| Leech | 10.67 ft - (3252 mm) |
| Length Perpendicular | * 4.9 ft - (1494 mm) |
| Area | * 30.21 ft² |
| Edit in Calculator | |
NANCY'S CHINA BERMUDA RIG - GENOA
| Luff | 13.67 ft - (4167 mm) |
|---|---|
| Foot | 8.42 ft - (2566 mm) |
| Leech | 13.33 ft - (4063 mm) |
| Length Perpendicular | * 7.89 ft - (2405 mm) |
| Area | * 53.96 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
