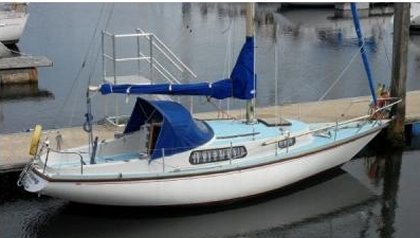

Mystere 26
Description
26 foot boat
Construction Details
| Designer | Fred Parker |
|---|---|
| Builder | Fairways Marine Ltd |
| Length | 26.000 ft |
| LOA | 25.750 ft |
| LWL | 18.500 ft |
| Beam | 8.530 ft |
| Displacement | 4950 lb |
| Ballast | 2240 lb |
| Max Draft | 4.590 ft |
| Year Built | 1970 |
The standard boat dimensions
| i | 26 ft |
|---|---|
| j | 9.50 ft |
| p | 24 ft |
| e | 9.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 26 ft | 9.50 ft | 24 ft | 9.75 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
Mystere 26 - MAIN (LG ROACH)
| Luff | * 24 ft - (7315 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | * 24.87 ft - (7580 mm) |
| Tack Angle | * 88 ° |
| Diag (clew/head) | * 25.03 ft - (7629 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | * 98.98 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
