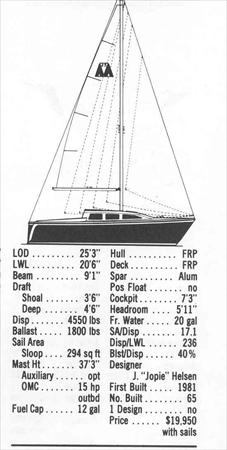

MONTEGO 25
Description
4550 lbs. Disp. 1800 lbs. Ballast 20'6" LWL 9'1" Beam 4'6" Draft deep 3'6" Draft shoal 37'3" Mast Height above DWL
Construction Details
| Designer | J. Helsen |
|---|---|
| Length | 25.250 ft |
| LOA | 25.000 ft |
| LWL | 20.500 ft |
| Beam | 9.080 ft |
| Displacement | 4500 lb |
| Max Draft | 4.500 ft |
The standard boat dimensions
| i | 32 ft |
|---|---|
| j | 11 ft |
| p | 27.25 ft |
| e | 9.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 32 ft | 11 ft | 27.25 ft | 9.50 ft | - | - | - | - |
Sails
MONTEGO 25 - MAINSAIL
| Luff | * 27.25 ft - (8306 mm) |
|---|---|
| Foot | * 9.5 ft - (2896 mm) |
| Leech | * 28.33 ft - (8635 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 28.54 ft - (8699 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 133.78 ft² |
| Edit in Calculator | |
MONTEGO 25 - JIBSAIL
| Luff | * 27.07 ft - (8251 mm) |
|---|---|
| Foot | * 14.75 ft - (4496 mm) |
| Leech | * 23.23 ft - (7081 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 171.21 ft² |
| Edit in Calculator | |
MONTEGO 25 - GENOA
| Luff | * 32.15 ft - (9799 mm) |
|---|---|
| Foot | * 17.92 ft - (5462 mm) |
| Leech | * 30.09 ft - (9171 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 265.26 ft² |
| Edit in Calculator | |
MONTEGO 25 - DRIFTER
| Luff | * 32.15 ft - (9799 mm) |
|---|---|
| Foot | * 18.68 ft - (5694 mm) |
| Leech | * 28.63 ft - (8726 mm) |
| Perc LP | * 150 % |
| Length Perp | * 16.5 ft - (5029 mm) |
| Deck Angle | * 8.98 ° |
| Area | * 265.27 ft² |
| Edit in Calculator | |
MONTEGO 25 - ASYMMETRICAL
| Luff | * 32.15 ft - (9799 mm) |
|---|---|
| Foot | * 18.15 ft - (5532 mm) |
| Leech | * 29.58 ft - (9016 mm) |
| Perc LP | * 165 % |
| Area | * 438 ft² |
| Edit in Calculator | |
MONTEGO 25 - SPINNAKER
| Stays | * 32.15 ft - (9799 mm) |
|---|---|
| MidGirth | * 19.8 ft - (6035 mm) |
| Foot | * 19.8 ft - (6035 mm) |
| Perc LP | * 180 % |
| Area | * 541 ft² |
| Edit in Calculator | |
MONTEGO 25 - STORMJIB
| Luff | * 18.61 ft - (5672 mm) |
|---|---|
| Foot | * 8.37 ft - (2551 mm) |
| Leech | * 14.99 ft - (4569 mm) |
| Perc LP | * 60 % |
| Length Perp | * 6.6 ft - (2012 mm) |
| Deck Angle | * 19 ° |
| Area | * 61.39 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
