Mg 38
Description

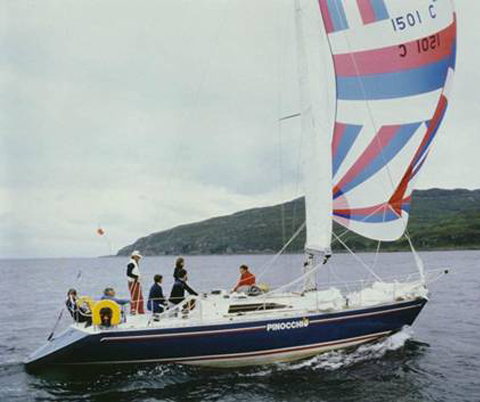

The MG 38 is a cruising yacht designed by Rob Humphreys. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Rob Humphreys |
|---|---|
| Length | 38.000 ft |
| LOA | 37.800 ft |
| LWL | 28.300 ft |
| Beam | 12.000 ft |
| Displacement | 13280 lb |
| Max Draft | 7.000 ft |
The standard boat dimensions
| i | 45.15 ft |
|---|---|
| j | 13.26 ft |
| p | 45.90 ft |
| e | 16.40 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 45.15 ft | 13.26 ft | 45.90 ft | 16.40 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 45.9 ft - (13990 mm) |
| Foot | * 16.4 ft - (4999 mm) |
| Leech-AftHdBd | * 48.03 ft - (14640 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 48.2 ft - (14691 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 375.99 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 37.65 ft - (11476 mm) |
| Foot | * 17.33 ft - (5282 mm) |
| Leech | * 33.13 ft - (10098 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 15.25 ft - (4648 mm) |
| Deck Angle | * 12 ° |
| Area | 287.03 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 44.7 ft - (13625 mm) |
| Foot | * 21.22 ft - (6468 mm) |
| Leech | * 42.29 ft - (12890 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 19.89 ft - (6062 mm) |
| Deck Angle | * 4 ° |
| Area | 444.65 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 44.7 ft - (13625 mm) |
| MidGirth | * 23.87 ft - (7276 mm) |
| Foot | * 23.87 ft - (7276 mm) |
| Perc LP | * 180 % |
| Area | 906.94 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
