Mertens-Goosens PK78 and D4 Dinghy
Description
The Mertens-Goossens PK78 is a Belgian-designed pram dinghy by naval architect Jacques Mertens-Goossens, intended as a simple, multi-purpose tender for rowing, sailing, or outboard use on calm waters like ponds, small lakes, or sheltered harbors. Introduced in the early 2000s as an amateur builder's project, it serves as a successor to the D4, using just two sheets of 1/4" plywood for an easy, scarf-free build via stitch-and-glue epoxy and fiberglass. Mertens, known for over 100 small craft designs, created it for DIY enthusiasts during the plywood boat revival, with plans available from sources like Duckworks or directly from the designer. No factory production; dozens built by amateurs.
Construction Details
| Designer | Mertens-Goossens |
|---|---|
| Length | 8.000 ft |
| LOA | 7.830 ft |
| Beam | 3.920 ft |
| Displacement | 75 lb |
| Max Draft | 2.000 ft |
| Min Draft | 0.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails

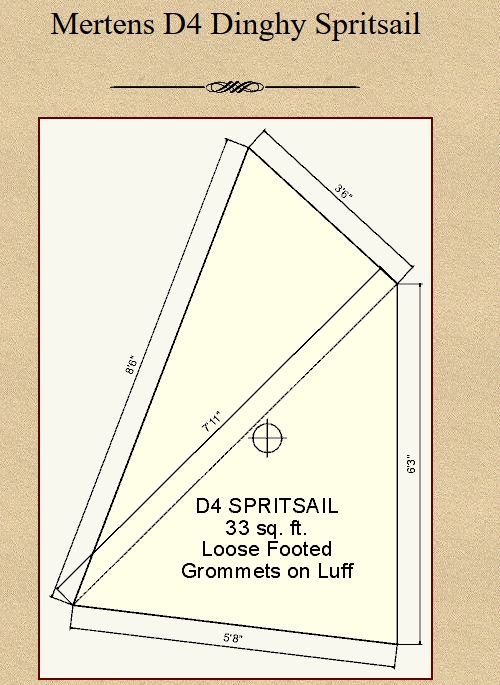

Mertens-Goosens PK78 and D4 Dinghy - SPRIT
| Luff | 6.25 ft - (1905 mm) |
|---|---|
| Foot | 5.5 ft - (1676 mm) |
| Leech | 8.5 ft - (2591 mm) |
| Tack Angle | * 84.5 ° |
| Diag (clew/throat) | 7.92 ft - (2414 mm) |
| Head | 3.5 ft - (1067 mm) |
| Area | * 30.95 ft² |
| Edit in Calculator | |
