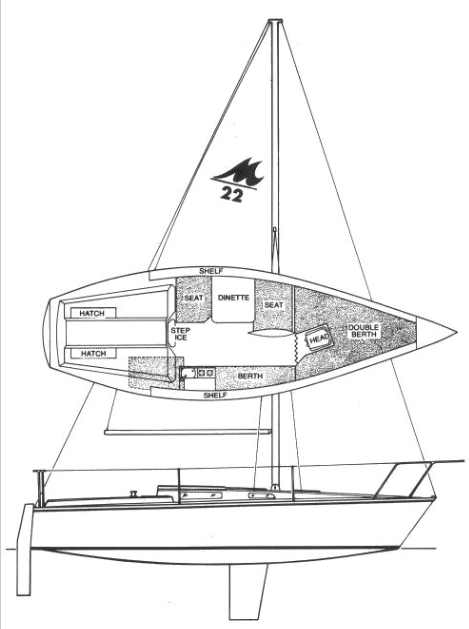

Merit 22
Description
The Merit 22 is a lightweight, trailerable fiberglass sailboat designed by Paul Yates and built by Merit Marine Inc. from 1983 to 1988, with approximately 100–150 units produced. Featuring a fin keel (standard) or centerboard (variant), spade rudder, raked stem, and reverse transom, it’s designed for club racing under MORC (Midget Ocean Racing Club) and PHRF rules (~210–230) and coastal day sailing, with modest accommodations for short overnights. Powered by an outboard auxiliary (typically 4–8 hp in a well), with tiller steering, it’s agile, easy to handle, and highly trailerable.
Construction Details
| Designer | Paul M. Yates |
|---|---|
| Builder | Merit Marine Inc. |
| Length | 22.000 ft |
| LOA | 22.000 ft |
| LWL | 18.000 ft |
| Beam | 8.000 ft |
| Displacement | 2000 lb |
| Max Draft | 4.000 ft |
| Min Draft | 2.000 ft |
The standard boat dimensions
| i | 28 ft |
|---|---|
| j | 8.25 ft |
| p | 23 ft |
| e | 9.60 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 28 ft | 8.25 ft | 23 ft | 9.60 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23 ft - (7010 mm) |
| Foot | * 9.6 ft - (2926 mm) |
| Leech | * 24.4 ft - (7437 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 24.61 ft - (7501 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 114.14 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 9.58 ft - (2920 mm) |
| Leech | 22.25 ft - (6782 mm) |
| Percentage LP | * 105.45 % |
| Length Perpendicular | * 8.7 ft - (2652 mm) |
| Deck Angle | * 8.39 ° |
| Area | * 106.52 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 25.25 ft - (7696 mm) |
| Percentage LP | * 110.55 % |
| Length Perpendicular | * 9.12 ft - (2780 mm) |
| Deck Angle | * 4.33 ° |
| Area | * 123.09 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 27 ft - (8230 mm) |
| Foot | 13.083 ft - (3988 mm) |
| Leech | 25.75 ft - (7849 mm) |
| Percentage LP | * 149.33 % |
| Length Perpendicular | * 12.32 ft - (3755 mm) |
| Deck Angle | * 3.19 ° |
| Area | * 166.38 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 27.73 ft - (8452 mm) |
| Foot | * 13.21 ft - (4026 mm) |
| Leech | * 26.23 ft - (7995 mm) |
| Percentage LP | * 150.06 % |
| Length Perpendicular | * 12.38 ft - (3773 mm) |
| Deck Angle | * 3.99 ° |
| Area | * 171.66 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 27.73 ft - (8452 mm) |
| Foot | * 13.71 ft - (4179 mm) |
| Leech | * 25.1 ft - (7650 mm) |
| Perc LP | * 150.06 % |
| Length Perp | * 12.38 ft - (3773 mm) |
| Deck Angle | * 9.05 ° |
| Area | * 171.62 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 27.73 ft - (8452 mm) |
| Foot | * 13.61 ft - (4148 mm) |
| Leech | * 25.51 ft - (7775 mm) |
| Perc LP | * 165 % |
| Area | * 283 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 31.75 ft - (9677 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 26 ft - (7925 mm) |
| Perc LP | * 165 % |
| Area | * 381 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 27.73 ft - (8452 mm) |
| MidGirth | * 14.85 ft - (4526 mm) |
| Foot | * 14.85 ft - (4526 mm) |
| Perc LP | * 180 % |
| Area | * 350 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 16.05 ft - (4892 mm) |
| Foot | * 6.07 ft - (1850 mm) |
| Leech | * 13.48 ft - (4109 mm) |
| Perc LP | * 60 % |
| Length Perp | * 4.95 ft - (1509 mm) |
| Deck Angle | * 18.93 ° |
| Area | * 39.73 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
