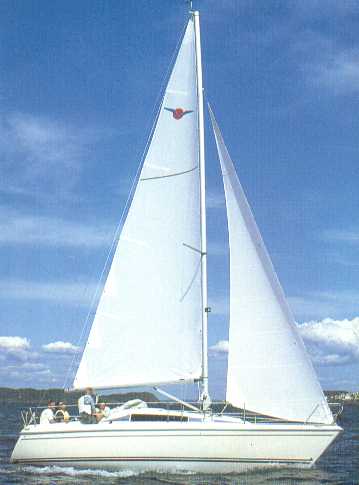

Maxi Fenix
Description
The MAXI FENIX is a compact cruiser. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 28.000 ft |
| LOA | 27.900 ft |
| LWL | 24.280 ft |
| Beam | 9.350 ft |
| Displacement | 6173 lb |
| Max Draft | 4.920 ft |
The standard boat dimensions
| i | 29.86 ft |
|---|---|
| j | 10.17 ft |
| p | 32.81 ft |
| e | 11.81 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 29.86 ft | 10.17 ft | 32.81 ft | 11.81 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.81 ft - (10000 mm) |
| Foot | * 11.81 ft - (3600 mm) |
| Leech | * 34.24 ft - (10436 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 34.48 ft - (10510 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 199.9 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 25.24 ft - (7693 mm) |
| Foot | * 13.62 ft - (4151 mm) |
| Leech | * 21.69 ft - (6611 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 11.7 ft - (3566 mm) |
| Deck Angle | * 12 ° |
| Area | * 147.63 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.75 ft - (8763 mm) |
| Foot | 12.67 ft - (3862 mm) |
| Leech | 25.5 ft - (7772 mm) |
| Percentage LP | * 110.42 % |
| Length Perpendicular | * 11.23 ft - (3423 mm) |
| Deck Angle | * 8.73 ° |
| Area | * 161.49 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 29.97 ft - (9135 mm) |
| Foot | * 16.54 ft - (5041 mm) |
| Leech | * 28.07 ft - (8556 mm) |
| Percentage LP | * 149.95 % |
| Length Perpendicular | * 15.25 ft - (4648 mm) |
| Deck Angle | * 3.97 ° |
| Area | * 228.52 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 30 ft - (9144 mm) |
| Foot | 17 ft - (5182 mm) |
| Leech | 28 ft - (8534 mm) |
| Perc LP | * 165 % |
| Area | * 382 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
